Same model may have multiple batches, images only for reference.

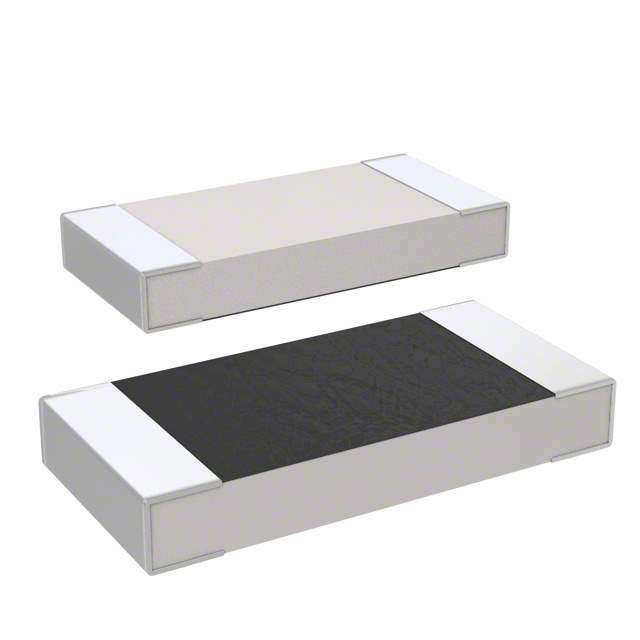

M55342E03B78B7RWS Real Image
Same model may have multiple batches, images only for reference.

M55342E03B78B7RWS

Part No M55342E03B78B7RWS
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES SMD 78.7K OHM 0.1% 1/5W 1005  /  78.7 kOhms ±0.1% 0.2W, 1/5W Chip Resistor Nonstandard Military, Non-Inductive Thin Film
Datasheet
M55342E03B78B7RWS Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Vishay Dale Thin Film
Series Military, MIL-PRF-55342, RM1005
Package Tray
Resistance 78.7 kOhms
Tolerance ±0.1%
Power (Watts) 0.2W, 1/5W
Composition Thin Film
Features Military, Non-Inductive
Temperature Coefficient ±25ppm/°C
Temperature Range - Operating -55°C ~ 150°C
Package / Case Nonstandard
Supplier Device Package 1005
Dimension 0.105" L x 0.050" W (2.67mm x 1.27mm)
Height - Seated (Max) 0.033" (0.84mm)
Number of Terminations 2
Failure Rate R (0.01%)
Base Product Number M55342
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0030
Other Names 764-M55342E03B78B7RWS,M55342E03B78B7RWS-MIL,M55342E03B78B7RWS-ND
Standard Package 1
Win Source Part Number 1047927-M55342E03B78B7RWS
Ultra Librarian 3D Model Ultra Librarian M55342E03B78B7RWS CAD Model

Description

The Vishay Dale Thin Film M55342E03B78B7RWS is a chip resistor that is designed for surface mount.

  • Series: Military, MIL-PRF-55342, RM1005
  • Failure Rate: R (0.01%)
  • Tolerance: ±0.1%
  • Temperature Coefficient: ±25ppm/°C
  • Power: 0.2W, 1/5W
  • Resistance: 78.7 kOhms
