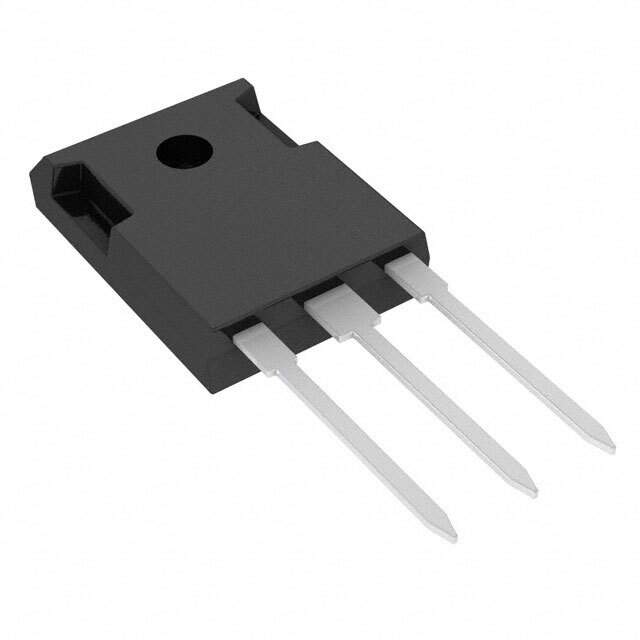

MBR3060PT-E3/45 Real Image
Same model may have multiple batches, images only for reference.

MBR3060PT-E3/45

Part No MBR3060PT-E3/45
Manufacturer Vishay
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY SCHOTTKY 60V TO3P
Datasheet
MBR3060PT-E3/45 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Tube
Diode Configuration 1 Pair Common Cathode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Maximum) 60V
Current - Average Rectified (Io) (per Diode) 20A
Voltage - Forward (Vf) (Maximum) @ If 750mV @ 20A
Speed Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 5mA @ 60V
Operating Temperature - Junction -65°C ~ 150°C
Mounting Style Through Hole
Package TO-3P-3, SC-65-3
Manufacturer Package TO-3P
Manufacturer Vishay
Manufacturer Homepage www.vishay.com
RoHS State Request Verification
Win Source Part Number 715198-MBR3060PT-E3/45
Popularity Medium
Supply and Demand Status Limited
Family Name MBR3060PT
Introduction Date June 24, 1998
ECCN EAR99
Estimated EOL Date 2023
Ultra Librarian 3D Model Ultra Librarian MBR3060PT-E3/45 CAD Model

Description

The Vishay MBR3060PT is a Schottky diode.

  • Current Rating: 20A
  • Maximum Reverse Voltage: 60V
  • Forward Voltage Drop: 750mV @ 20A
  • Reverse Leakage Current: 5mA @ 60V
  • Configuration: Common Cathode
  • Package: TO-3P-3 or SC-65-3
  • RoHS Compliance: Yes
  • Estimated EOL Date: 2023
