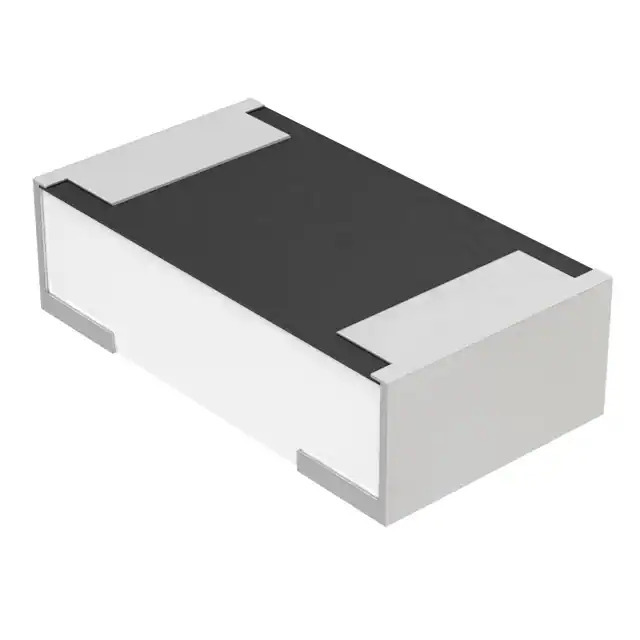

MFU0603FF02500P100 Vishay
Same model may have multiple batches, images only for reference.

MFU0603FF02500P100

Part No MFU0603FF02500P100
Manufacturer Vishay
Catalog Fuses
Description FUSE BOARD MOUNT 2.5A 32VDC 0603 / 2.5 A AC 32 V DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 0603 (1608 Metric)
Datasheet
MFU0603FF02500P100 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Fuses
Mfr Vishay Beyschlag/Draloric/BC Components
Series MFU
Package Tape & Reel
Product Status Active
Mounting Type Surface Mount
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 2.5 A
Voltage Rating - DC 32 V
Response Time Fast Blow
Package / Case 0603 (1608 Metric)
Breaking Capacity @ Rated Voltage 50A
Melting I²t 0.0157
Approval Agency UL
Temperature Range - Operating -55°C ~ 125°C
Color -
Size / Dimension 0.061" L x 0.033" W x 0.018" H (1.55mm x 0.85mm x 0.45mm)
DC Cold Resistance 0.037 Ohms
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.10.0040
Win Source Part Number 1361385-MFU0603FF02500P100
Ultra Librarian 3D Model Ultra Librarian MFU0603FF02500P100 CAD Model

Description

The MFU0603FF02500P100 is a surface mount fuse from Vishay Beyschlag/Draloric/BC Components.

  • Series: MFU
  • Package: 0603 (1608 Metric)
  • Current Rating: 2.5A
  • Voltage Rating: 32V
  • Fuse Type: Fast Blow
  • Breaking Capacity: 50A
  • Size: 0.061" L x 0.033" W x 0.018" H (1.55mm x 0.85mm x 0.45mm)
  • Approvals: UL
  • Operating Temperature: -55°C to 125°C
