Same model may have multiple batches, images only for reference.

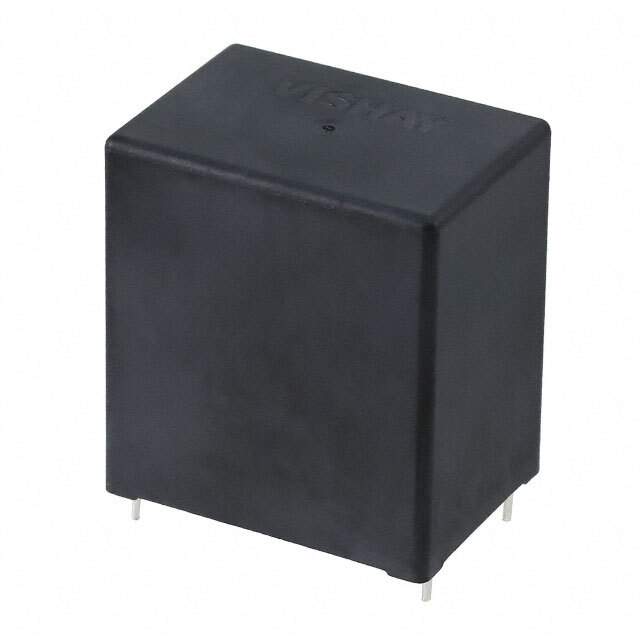

MKP1847H62025JP5 Real Image
Same model may have multiple batches, images only for reference.

MKP1847H62025JP5

Part No MKP1847H62025JP5
Manufacturer Vishay
Catalog Film Capacitors
Description CAP FILM 20UF 5% 500VDC RADIAL  /  20 µF Film Capacitor 250V 500V Polypropylene (PP), Metallized Radial - 4 Leads
Datasheet
MKP1847H62025JP5 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Film Capacitors
Mfr Vishay Beyschlag/Draloric/BC Components
Series MKP 1847H
Package Bulk
Capacitance 20 µF
Tolerance ±5%
Voltage Rating - AC 250V
Voltage Rating - DC 500V
Dielectric Material Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) 3 mOhms
Temperature Range - Operating -40°C ~ 105°C
Mounting Type Through Hole
Package / Case Radial - 4 Leads
Dimension 1.654" L x 1.181" W (42.00mm x 30.00mm)
Height - Seated (Max) 1.791" (45.50mm)
Termination PC Pins
Lead Spacing 1.476" (37.50mm)
Applications EMI, RFI Suppression
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8532.25.0070
Other Names BC3331
Standard Package 63
Win Source Part Number 1063759-MKP1847H62025JP5
Ultra Librarian 3D Model Ultra Librarian MKP1847H62025JP5 CAD Model

Description

The Vishay Beyschlag/Draloric/BC Components MKP 1847H series offers the MKP1847H62025JP5 film capacitor that is perfect for your EMI and RFI suppression needs.

  • Package: Radial-4 leads
  • Capacitance: 20 µF
  • Tolerance: ±5%
  • Lead Spacing: 1.476" (37.50mm)
  • ESR: 3 mOhms
  • Dielectric Material: Polypropylene (PP), Metallized
  • MSL Level: 1 (unlimited)
  • HTSUS: 8532.25.0070
  • Dimensions: 1.654" L x 1.181" W (42.00mm x 30.00mm)
  • Temperature Range: -40°C ~ 105°C
