Same model may have multiple batches, images only for reference.

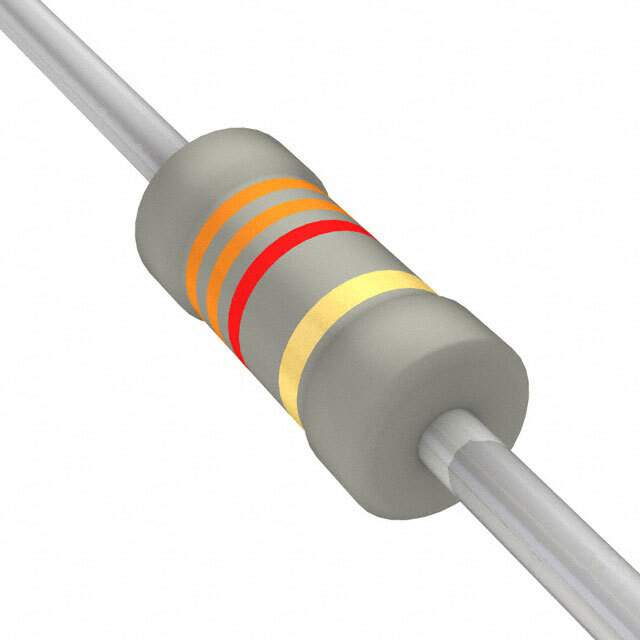

NFR25H0003301JR500 Real Image
Same model may have multiple batches, images only for reference.

NFR25H0003301JR500

Part No NFR25H0003301JR500
Manufacturer Vishay
Catalog Through Hole Resistors
Description RES 3.3K OHM 1/2W 5% AXIAL / 3.3 kOhms ±5% 0.5W, 1/2W Through Hole Resistor Axial Flame Proof, Fusible, Safety Metal Film
Datasheet
NFR25H0003301JR500 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Through Hole Resistors
Mfr Vishay Beyschlag/Draloric/BC Components
Series NFR25H
Package Tape & Reel (TR),Cut Tape (CT)
Resistance 3.3 kOhms
Tolerance ±5%
Power (Watts) 0.5W, 1/2W
Composition Metal Film
Features Flame Proof, Fusible, Safety
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case Axial
Supplier Device Package Axial
Dimension 0.098" Dia x 0.256" L (2.50mm x 6.50mm)
Number of Terminations 2
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0090
Other Names PPC3.3KBTR,2322 207 23332,PPC3.3KBCT-NDR,5065FD3K300J12AFX,PPC3.3KBTR-NDR,PPC3.3KBCT
Standard Package 5,000
Win Source Part Number 1014170-NFR25H0003301JR500
Ultra Librarian 3D Model Ultra Librarian NFR25H0003301JR500 CAD Model

Description

The Vishay Beyschlag/Draloric/BC Components NFR25H0003301JR500 is a through-hole resistor from the resistors category.

  • Popularity: Low popularity
  • Supply and Demand: Balance
  • Features: Flame proof, fusible and safety featured
  • Power: 0.5W (1/2W)
  • Type: Metal Film
  • Tolerance: ±5%
  • Temperature Coefficient: ±100ppm/°C
  • Terminations: 2
  • Resistance: 3.3 kOhms
  • Package/Case: Axial
  • Supplier Device Package: Axial
