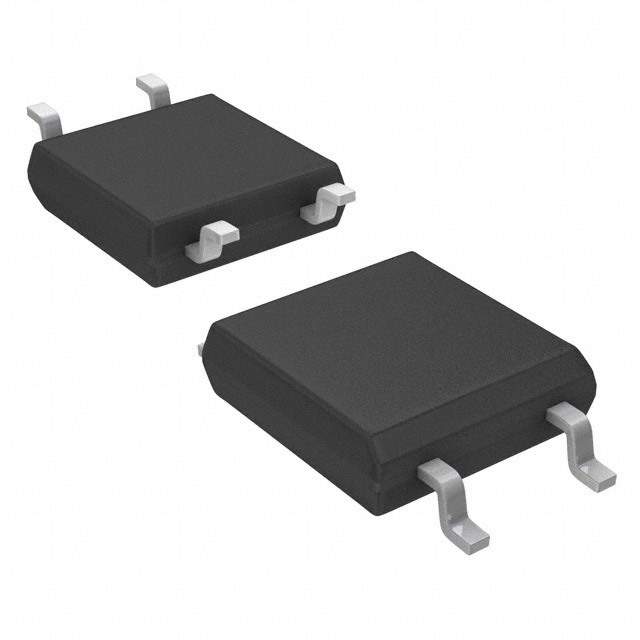

SFH690AT

Name: SFH690AT
Brand: Vishay
SKU: 319211
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SFH690AT
Manufacturer	Vishay
Catalog	Optoisolators - Transistor, Photovoltaic Output
Description	Optocoupler DC-IN 1-CH Transistor DC-OUT 4-Pin SOP T/R / OPTOISOLATOR 3.75KV TRANS 4-SOP
Datasheet	SFH690AT Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Isolators
Manufacturer	Vishay
Packaging	Reel - TR
Status	Active
Number of Channels	1
Isolation Voltage	3750Vrms
Minimum DC Current Transfer Ratio	50% @ 5mA
Maximum DC Current Transfer Ratio	150% @ 5mA
Switching Turn-On and Turn-Off Time	5μs, 3μs
Rise and Fall Time	3μs, 4μs
Input Type	DC
Output Type	Transistor
Maximum Output Voltage	70V
Channel Output Current	50mA
Forward Voltage	1.15V
Continuous forward current- Max	50mA
Vce Saturation (Max)	300mV
Temperature Range - Operating	-55°C to 100°C
Mounting	SMD (SMT)
Case / Package	4-SOP (2.54mm)
Win Source Part Number	064331-SFH690AT
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Balance
Family Name	SFH690
Introduction Date	September 12, 2001
ECCN	EAR99
Country of Origin	China
Halogen Free	Compliant
Estimated EOL Date	2025
Ultra Librarian 3D Model	Ultra Librarian SFH690AT CAD Model

Alternative Products

Description

The SFH690AT is a transistor output optocoupler manufactured by Vishay.

Number of Channels: 1
Minimum DC Current Transfer Ratio: 50% @ 5mA
Maximum DC Current Transfer Ratio: 150% @ 5mA
Isolation Voltage: 3750Vrms
Continuous Forward Current: 50mA
Switching Turn-On Time: 5μs
Switching Turn-Off Time: 3μs
Rise Time: 3μs
Fall Time: 4μs
Maximum Output Voltage: 70V
Vce Saturation (Max): 300mV
Temperature Range: -55°C to 100°C
Case/Package: 4-SOP (2.54mm)
