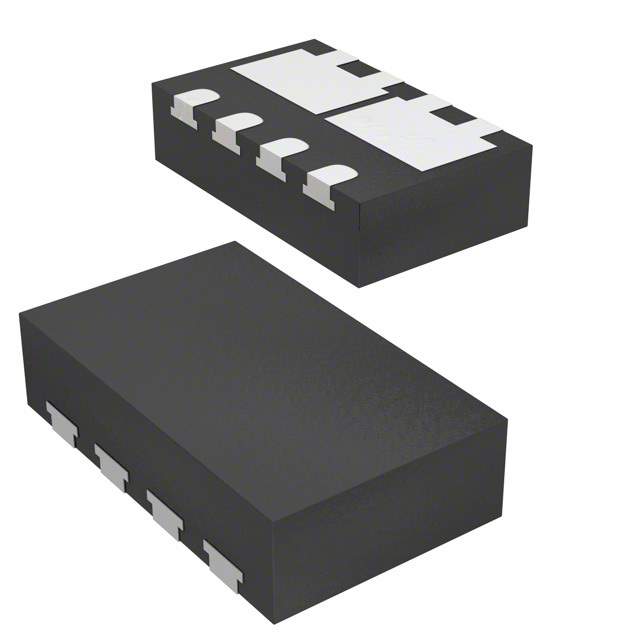

SI5857DU-T1-E3 Real Image
Same model may have multiple batches, images only for reference.

SI5857DU-T1-E3

Part No SI5857DU-T1-E3
Manufacturer Vishay
Catalog Transistors - FETs, MOSFETs - RF
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Mfr Vishay Siliconix
Series LITTLE FOOT®
Package Tape & Reel
Product Status Obsolete
FET Type P-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 20 V
Current - Continuous Drain (Id) @ 25°C 6A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 2.5V, 4.5V
Rds On (Max) @ Id, Vgs 58mOhm @ 3.6A, 4.5V
Vgs(th) (Max) @ Id 1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 17 nC @ 10 V
Vgs (Max) ±12V
Input Capacitance (Ciss) (Max) @ Vds 480 pF @ 10 V
FET Feature Schottky Diode (Isolated)
Power Dissipation (Max) 2.3W (Ta), 10.4W (Tc)
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting SMD (SMT)
Supplier Device Package PowerPAK® ChipFET™ Single
Package / Case PowerPAK® ChipFET™ Single
Base Product Number SI5857
Other Names SI5857DU-T1-E3CT,SI5857DU-T1-E3TR,SI5857DUT1E3,SI5857DU-T1-E3DKR
Standard Package 3,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Win Source Part Number 1277700-SI5857DU-T1-E3
Ultra Librarian 3D Model Ultra Librarian SI5857DU-T1-E3 CAD Model

Description

The SI5857DU-T1-E3 MOSFET is a P-Channel FET with a Schottky Diode feature.

  • Drain to Source Voltage: 20V
  • Continuous Drain Current: 6A @ 25°C
  • Maximum Rds On: 58mOhm @ 3.6A and 4.5V
  • Gate Charge (Qg): 17nC @ 10V
  • Input Capacitance (Ciss): 480pF @ 10Vds
  • Power Dissipation: 2.3W (Ta) and 10.4W (Tc)
  • Temperature Range: -55°C to 150°C (TJ)
  • Package: PowerPAK ChipFET Single
  • Drive Voltage: 2.5V Maximum, with a minimum Rds On of 4.5V
  • Applications: Power Management, Battery Protection, and Load Switching
