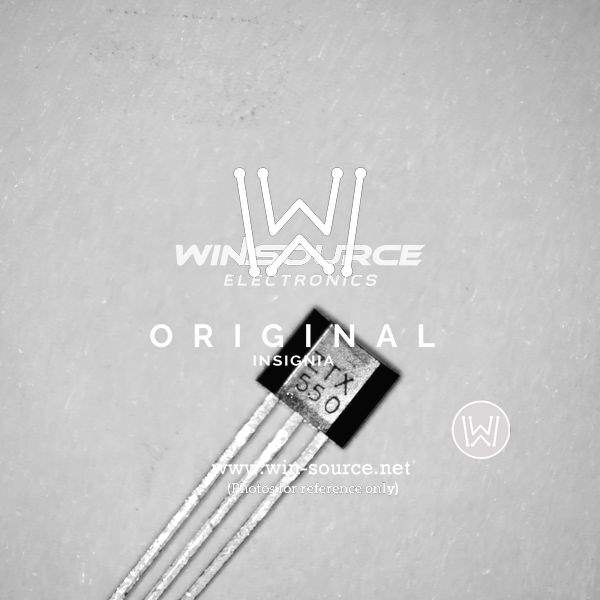

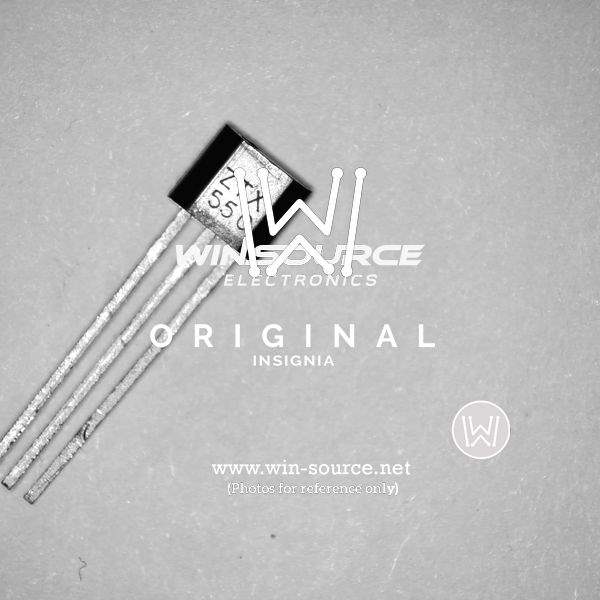

The ZTX550 from Diodes Incorporated is a high-performance, low-power PNP transistor that is designed to meet the needs of a wide range of electronic applications. This versatile transistor is characterized by its exceptional gain characteristics and excellent linearity, making it an ideal choice for audio amplifiers, signal processing, and other analog circuits.

Key Features:

• High Current Gain (hFE): The ZTX550 boasts a high current gain, which ensures efficient current amplification in electronic circuits. This feature is particularly beneficial in applications where signal amplification is critical.
• Low Saturation Voltage: The low V<sub>CE(sat) of the ZTX550 minimizes power loss and improves efficiency, which is crucial for battery-powered devices and power-sensitive applications.
• High Power Dissipation: With an impressive power dissipation capability, the ZTX550 can handle higher power levels, making it suitable for more demanding circuits.
• Wide Operating Temperature Range: The device can operate effectively over a broad temperature range, ensuring reliability and performance stability across various environmental conditions.

Applications:

The ZTX550 is widely used in a variety of applications. Its robust performance makes it an excellent choice for:

• Audio Amplifiers
• Signal Processing Units
• Power Management Systems
• Driver Stages in Hi-Fi Amplifiers
• Linear Amplification and Switching

Product Specifications:

The ZTX550 from Diodes Incorporated is a reliable and efficient solution for designers looking to enhance the performance of their electronic products. With its high gain, low saturation voltage, and wide operating temperature range, the ZTX550 is a top choice for professionals seeking a high-quality PNP transistor.
