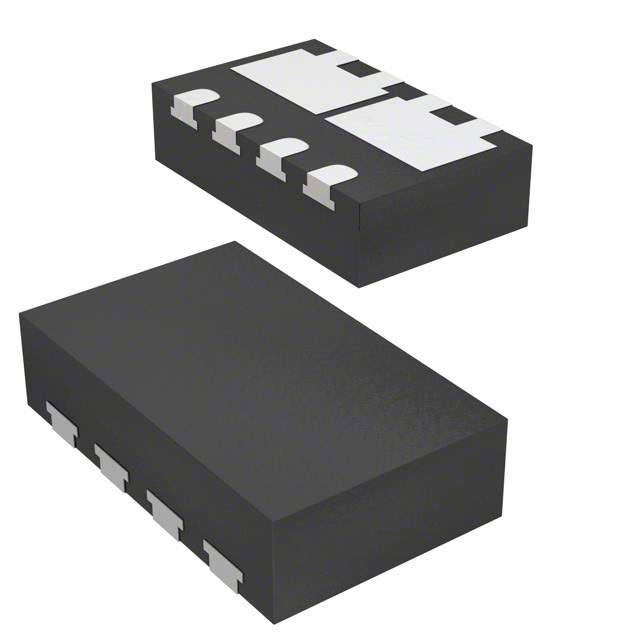

The Si5938DU-T1-GE3 is a P-channel MOSFET from Vishay. It is designed for load switching and power management applications where high efficiency and compact size are crucial. This MOSFET boasts a low on-resistance, which minimizes power loss and improves overall system efficiency. It is available in a small-outline package, making it suitable for high-density PCB layouts.

Applications:

• Load switching
• Power management in portable devices
• Battery management systems
• Reverse polarity protection
• DC-DC conversion

Features:

• Low on-resistance (RDS(on))
• Small outline package (SO-8)
• High-speed switching
• -20V Gate-Source Voltage
• Lead (Pb)-free and Halogen-free

Benefits:

• Improved energy efficiency in power management circuits
• Reduced heat dissipation, leading to higher reliability
• Compact design ideal for space-constrained applications
• Fast switching for high-frequency operation
• Environmentally friendly due to lead-free and halogen-free construction

Additional Details:

The Si5938DU-T1-GE3 typically features a drain-source voltage rating of -20V and a continuous drain current rating in the range of -6.2A. The low gate charge allows for efficient switching and reduced power consumption in driver circuits. Its thermal resistance is optimized to facilitate heat dissipation and ensure reliable performance. The datasheet provides detailed specifications on gate threshold voltage, input capacitance, and output capacitance, enabling precise circuit design. This MOSFET is often used in conjunction with N-channel MOSFETs in complementary configurations for efficient power conversion. The Si5938DU-T1-GE3's combination of low on-resistance, fast switching speed, and compact size makes it a versatile choice for various power management applications in portable devices and other electronic systems.
