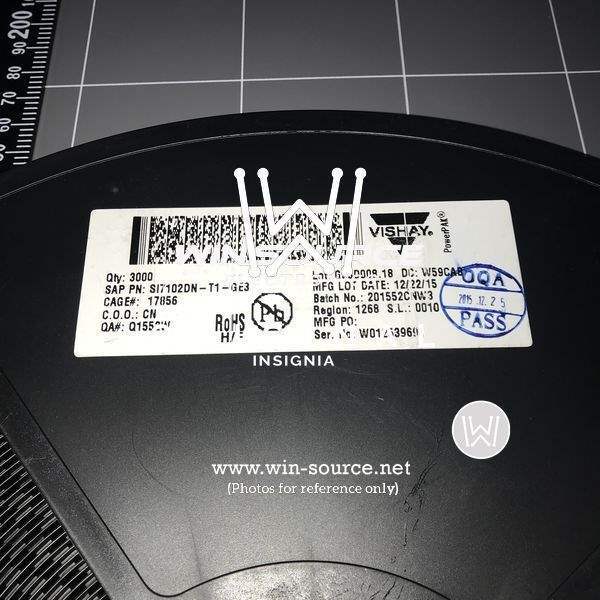

SI7102DN-T1-E3 Vishay SI7102DN-T1-E3 Real Image SI7102DN-T1-E3 label picture
Same model may have multiple batches, images only for reference.
SI7102DN-T1-E3 Vishay SI7102DN-T1-E3 Real Image SI7102DN-T1-E3 label picture
SI7102DN-T1-E3 Vishay SI7102DN-T1-E3 Real Image SI7102DN-T1-E3 label picture
Same model may have multiple batches, images only for reference.

SI7102DN-T1-E3

Part No SI7102DN-T1-E3
Manufacturer Vishay
Catalog Transistors - FETs, MOSFETs - RF
Description N-Channel 12-V (D-S) MOSFET
Datasheet
SI7102DN-T1-E3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Series TrenchFET
Packaging Reel - TR
Channel Type Type N
Technology MOSFET
Drain Source Voltage 12V
Current - Continuous Drain (Id) @ 25°C 35A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 2.5V, 4.5V
Vgs(th) (Maximum) @ Id 1V @ 250μA
Gate Charge (Qg) (Maximum) @ Vgs 110nC @ 8V
Input Capacitance (Ciss) (Maximum) @ Vds 3720pF @ 6V
Vgs (Maximum) ±8V
Power Dissipation (Maximum) 3.8W (Ta), 52W (Tc)
Rds On (Maximum) @ Id, Vgs 3.8 mOhm @ 15A, 4.5V
Operating Temperature Range -50°C ~ 150°C (TJ)
Mounting SMD
Manufacturer Package PowerPAK 1212-8
Package PowerPAK 1212-8
Win Source Part Number 1249389-SI7102DN-T1-E3
Manufacturer Homepage www.vishay.com
Popularity Medium
Supply and Demand Status Limited
Family Name Si7102DN
Introduction Date August 28, 2007
ECCN EAR99
Country of Origin China
Halogen Free Not Compliant
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian SI7102DN-T1-E3 CAD Model

Description

The Vishay Si7102DN is a MOSFET transistor that is part of the TrenchFET series.

  • Series: TrenchFET
  • Applications: Discrete semiconductor products
  • Power Dissipation: 3.8W (Ta), 52W (Tc)
  • Current Continuous Drain: 35A (Tc) @ 25°C
  • Drain-Source Voltage: 12V
  • Gate Charge (Qg): 110nC @ 8V
  • Input Capacitance (Ciss): 3720pF @ 6V
  • Rds On (Maximum) @ Id, Vgs: 3.8 mOhm @ 15A, 4.5V
  • Drive Voltage (Max Rds On, Min Rds On): 2.5V, 4.5V
  • Vgs(th) (Maximum) @ Id: 1V @ 250μA
  • Channel Type: N-Channel
  • Gate-Source Voltage (Maximum): ±8V
  • Mounting: Surface-Mount
  • Package: PowerPAK 1212-8
  • Operating Temperature: -50°C ~ 150°C (TJ)
  • Manufacturer: Vishay
