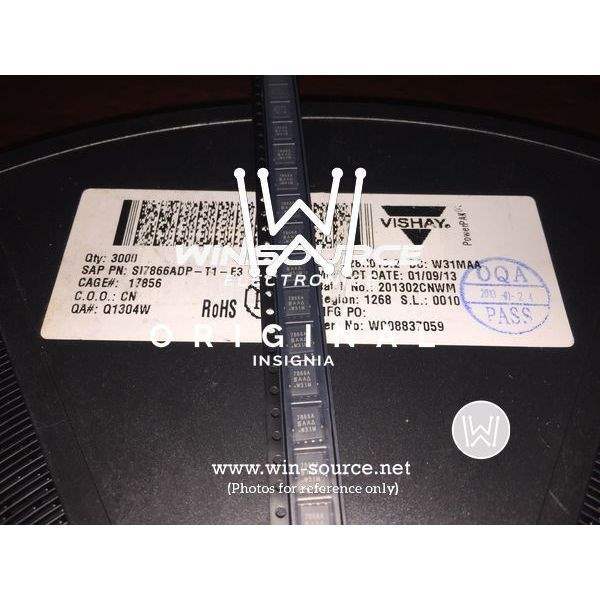

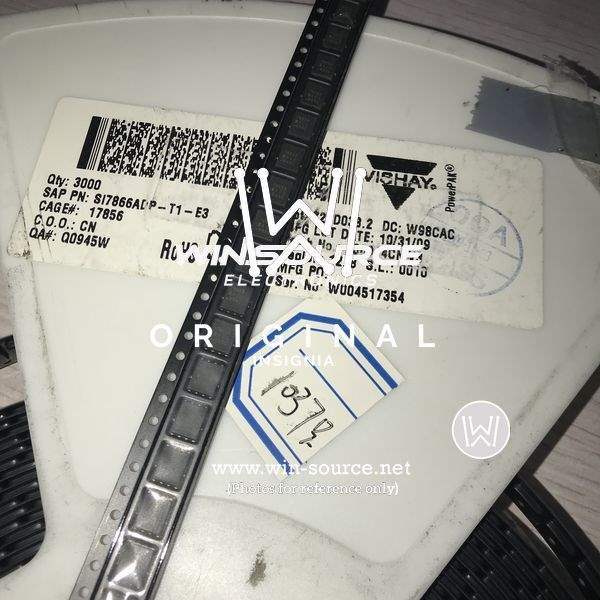

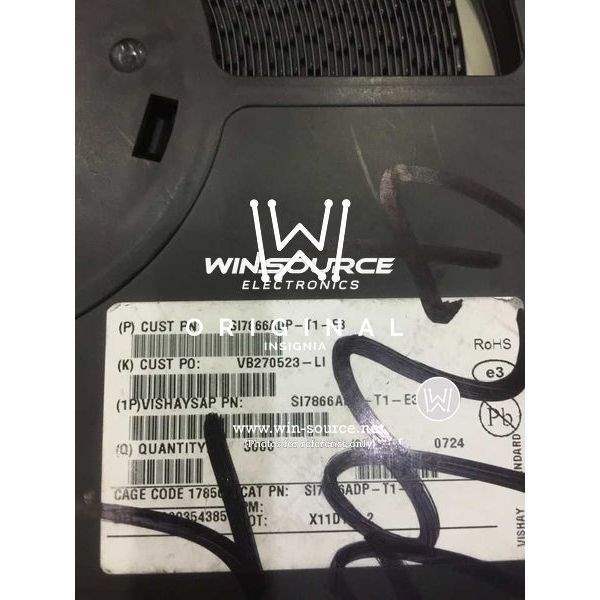

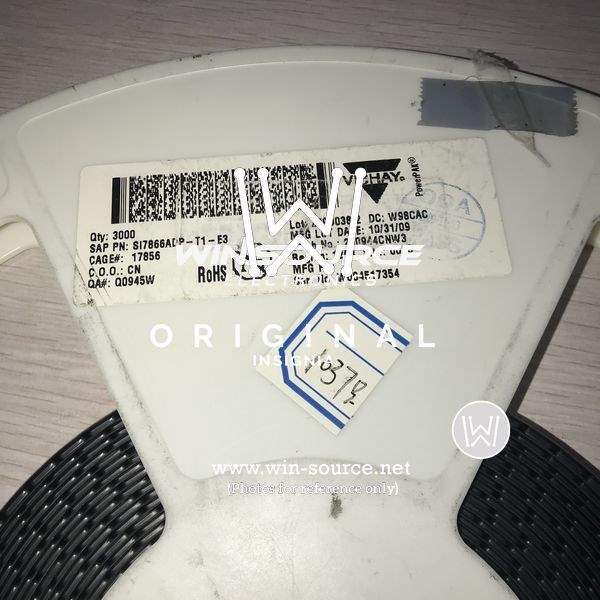

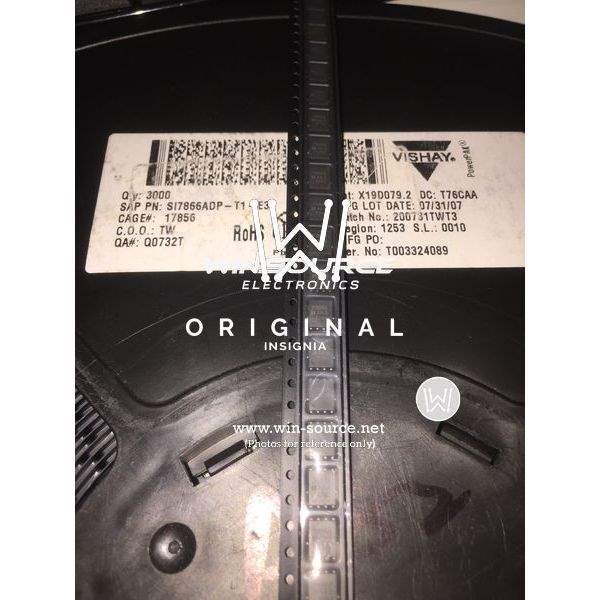

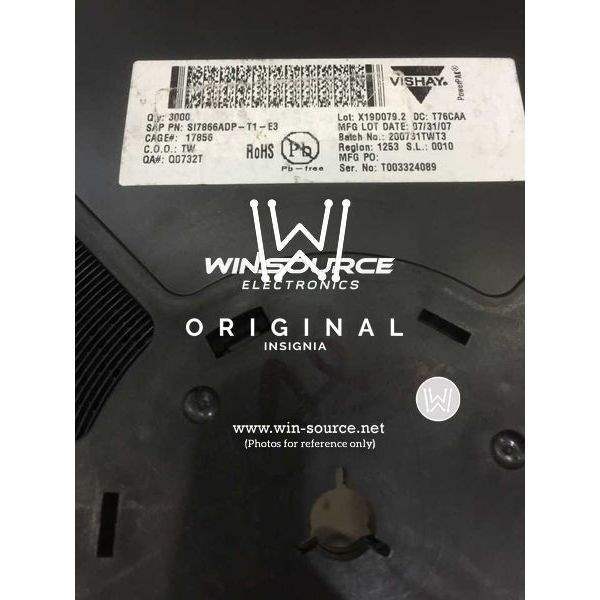

SI7866ADP-T1-E3 Vishay SI7866ADP-T1-E3 Real Image SI7866ADP-T1-E3 label picture 2 SI7866ADP-T1-E3 label picture 3 SI7866ADP-T1-E3 real image SI7866ADP-T1-E3 real image 2 SI7866ADP-T1-E3 real image 3 SI7866ADP-T1-E3 label picture 4
Same model may have multiple batches, images only for reference.
SI7866ADP-T1-E3 Vishay SI7866ADP-T1-E3 Real Image SI7866ADP-T1-E3 label picture 2 SI7866ADP-T1-E3 label picture 3 SI7866ADP-T1-E3 real image SI7866ADP-T1-E3 real image 2 SI7866ADP-T1-E3 real image 3 SI7866ADP-T1-E3 label picture 4
SI7866ADP-T1-E3 Vishay SI7866ADP-T1-E3 Real Image SI7866ADP-T1-E3 label picture 2 SI7866ADP-T1-E3 label picture 3 SI7866ADP-T1-E3 real image SI7866ADP-T1-E3 real image 2 SI7866ADP-T1-E3 real image 3 SI7866ADP-T1-E3 label picture 4
Same model may have multiple batches, images only for reference.

SI7866ADP-T1-E3

Part No SI7866ADP-T1-E3
Manufacturer Vishay
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 20V 40A PPAK SO-8
Datasheet
SI7866ADP-T1-E3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging Reel - TR
Status Active
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 20V
Continuous Drain Current at 25°C 40A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Gate-Source Threshold Voltage 2.2V @ 250μA
Max Gate Charge 125nC @ 10V
Max Input Capacitance 5415pF @ 10V
Maximum Gate-Source Voltage ±20V
Power Dissipation (Max) 5.4W (Ta), 83W (Tc)
Maximum Rds On at Id,Vgs 2.4 mOhm @ 20A, 10V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package PowerPAK SO-8
Dimension PowerPAK SO-8
Win Source Part Number 028679-SI7866ADP-T1-E3
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name Si7866ADP
Introduction Date December 02, 2005
ECCN EAR99
Country of Origin China
Halogen Free Not Compliant
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian SI7866ADP-T1-E3 CAD Model

Description

The Vishay electronic component with Win Source Part Number 028679-SI7866ADP-T1-E3 is a MOSFET device with N-Channel polarity.

  • Polarity: N-Channel
  • Maximum Power Dissipation: 5.4W (Ta) and 83W (Tc)
  • Drain-Source Breakdown Voltage: 20V
  • Continuous Drain Current: 40A (Tc)
  • Popularity: high popularity
  • Supply and Demand Status: balanced
  • Usage: common-used part with alternative cross-reference parts available
  • Package: PowerPAK SO-8
