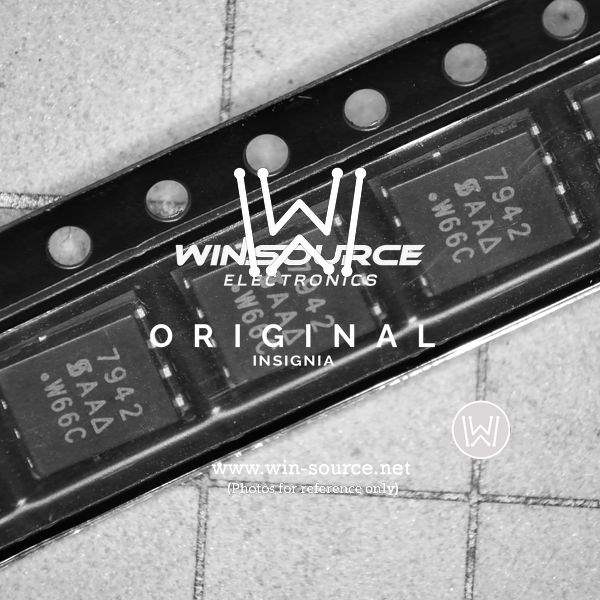

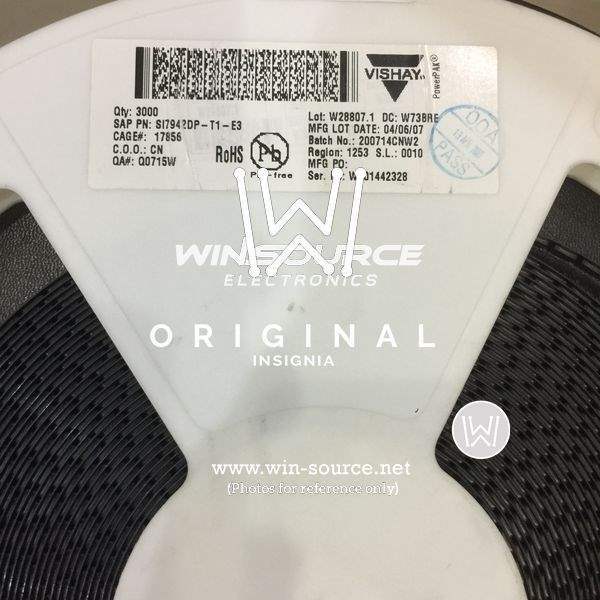

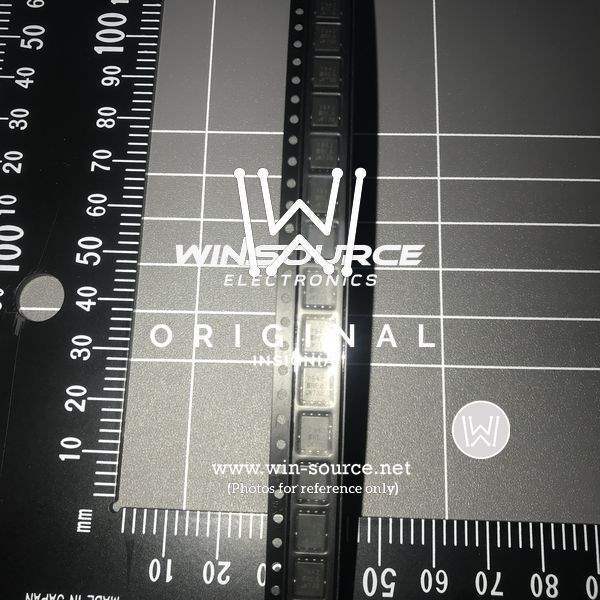

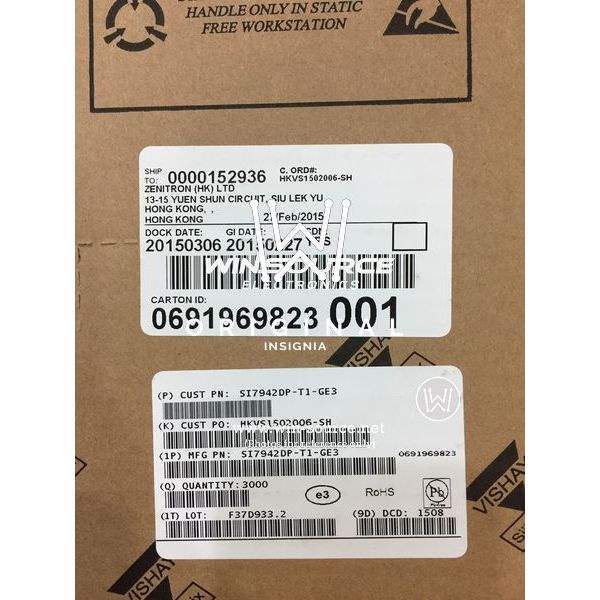

Same model may have multiple batches, images only for reference.

SI7942DP-T1-GE3

Name: SI7942DP-T1-GE3
Brand: Vishay
SKU: 322908
Availability: InStock
Rating: 4.84 (48 reviews)

Get a Quote

Part No	SI7942DP-T1-GE3
Manufacturer	Vishay
Catalog	Transistors - FETs, MOSFETs - RF
Description	Trans MOSFET N-CH 100V 3.8A 8-Pin PowerPAK SO T/R / MOSFET 2N-CH 100V 3.8A PPAK SO-8
Datasheet	SI7942DP-T1-GE3 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Discrete Semiconductor Products
Manufacturer	Vishay
Packaging	Reel - TR
Status	Active
FET Type	2 N-Channel (Dual)
FET Feature	Logic Level Gate
Drain-Source Breakdown Voltage	100V
Continuous Drain Current at 25°C	3.8A
Maximum Rds On at Id,Vgs	49 mOhm @ 5.9A, 10V
Gate-Source Threshold Voltage	4V @ 250μA
Max Gate Charge	24nC @ 10V
Maximum Power Dissipation	1.4W
Temperature Range - Operating	-55°C to 150°C (TJ)
Mounting	SMD (SMT)
Case / Package	PowerPAK SO-8 Dual
Win Source Part Number	130209-SI7942DP-T1-GE3
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Balance
Family Name	Si7942DP
Introduction Date	February 27, 2003
ECCN	EAR99
Halogen Free	Compliant
Estimated EOL Date	2027
Ultra Librarian 3D Model	Ultra Librarian SI7942DP-T1-GE3 CAD Model

Alternative Products

Description

The SI7942DP-T1-GE3 is a 2 N-channel (dual) MOSFET with logic level gate manufactured by Vishay.

Popularity: High
Status: Active
Supply and Demand Status: Balance
Temperature Range: -55°C to 150°C
Drain-Source Breakdown Voltage: 100V
Maximum Rds On @ 5.9A, 10V: 49 mOhm
