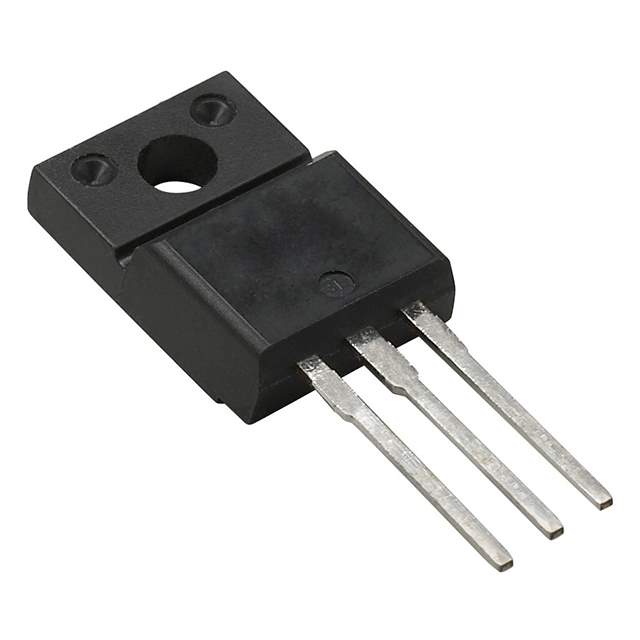

Same model may have multiple batches, images only for reference.

SIHA125N60EF-GE3

Name: SIHA125N60EF-GE3
Brand: Vishay
SKU: 988823
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SIHA125N60EF-GE3
Manufacturer	Vishay
Catalog	Transistors - FETs, MOSFETs - RF
Description	MOSFET N-CH 600V 11A TO220 / N-Channel 600 V 11A (Tc) 179W (Tc) Through Hole TO-220 Full Pack
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Mfr	Vishay Siliconix
Series	EF
Package	Tube
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	600 V
Current - Continuous Drain (Id) @ 25°C	11A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	125mOhm @ 12A, 10V
Vgs(th) (Max) @ Id	5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	47 nC @ 10 V
Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	1533 pF @ 100 V
Power Dissipation (Max)	179W (Tc)
Temperature Range - Operating	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-220 Full Pack
Package / Case	TO-220-3 Full Pack
Base Product Number	SIHA125
ECCN	EAR99
HTSUS	8541.29.0095
Other Names	742-SIHA125N60EF-GE3
Standard Package	50
Win Source Part Number	988823-SIHA125N60EF-GE3
Ultra Librarian 3D Model	Ultra Librarian SIHA125N60EF-GE3 CAD Model

Alternative Products

Description

The Vishay Siliconix 988823-SIHA125N60EF-GE3 is a N-Channel MOSFET transistor that belongs to the EF series.

Drain to Source Voltage: 600V
Continuous Drain Current: 11A @ 25°C
Maximum On-Resistance: 125mOhm @ 12A and 10V
Gate Charge: 47nC @ 10V
Input Capacitance: 1533pF @ 100Vds
Package Type: TO-220-3 Full Pack
RoHS Compliant: Yes
Temperature Range: -55°C to 150°C
Moisture Resistant: Yes
Suitable for: Automotive applications
AEC-Q200 Rated: Yes
