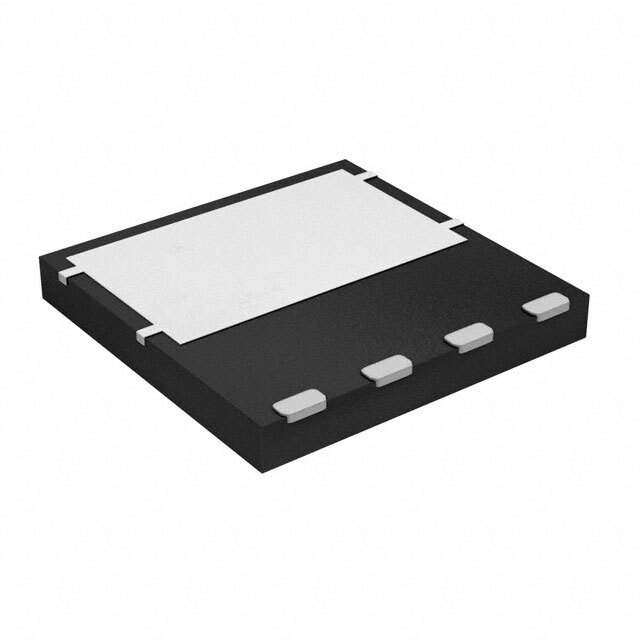

Same model may have multiple batches, images only for reference.

SIHH14N65EF-T1-GE3

Name: SIHH14N65EF-T1-GE3
Brand: Vishay
SKU: 1277923
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SIHH14N65EF-T1-GE3
Manufacturer	Vishay
Catalog	Transistors - FETs, MOSFETs - RF
Datasheet	SIHH14N65EF-T1-GE3 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Mfr	Vishay Siliconix
Package	Tape & Reel
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	650 V
Current - Continuous Drain (Id) @ 25°C	15A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	271mOhm @ 7A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	98 nC @ 10 V
Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	1749 pF @ 100 V
Power Dissipation (Max)	156W (Tc)
Temperature Range - Operating	-55°C ~ 150°C (TJ)
Mounting	SMD (SMT)
Supplier Device Package	PowerPAK® 8 x 8
Package / Case	8-PowerTDFN
Base Product Number	SIHH14
Other Names	SIHH14N65EF-T1-GE3CT,SIHH14N65EF-T1-GE3DKR,SIHH14N65EF-T1-GE3TR
Standard Package	3,000
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8541.29.0095
Win Source Part Number	1277923-SIHH14N65EF-T1-GE3
Ultra Librarian 3D Model	Ultra Librarian SIHH14N65EF-T1-GE3 CAD Model

Alternative Products

Description

The Vishay Siliconix MOSFET is a metal oxide semiconductor field-effect transistor that is suitable for use in various electronic devices.

Drain-to-source voltage: 650V
Continuous drain current: 15A @ 25°C
Rds On (Max): 271mOhm @ 7A and 10V
Vgs(th) (Max): 4V @ 250µA
Power Dissipation: 156W @ Tc
Gate Charge (Qg) (Max): 98nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds: 1749pF @ 100V
Vgs (Max): ±30V
Package: PowerPAK® 8 x 8 package
Case: 8-PowerTDFN
MSL level: Not applicable
ECCN: EAR99
