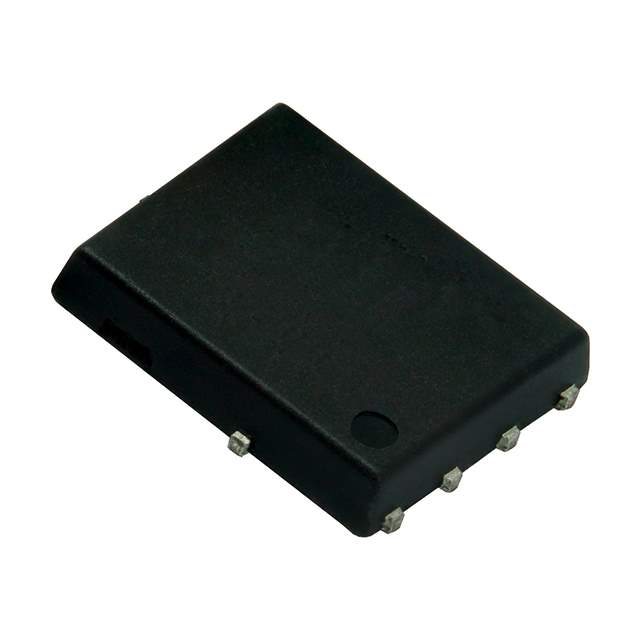

Same model may have multiple batches, images only for reference.

SIR186LDP-T1-RE3

Name: SIR186LDP-T1-RE3
Brand: Vishay
SKU: 1383442
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	SIR186LDP-T1-RE3
Manufacturer	Vishay
Catalog	Transistors - FETs, MOSFETs - RF
Description	N-CHANNEL 60-V (D-S) MOSFET POWE / N-Channel 60 V 23.8A (Ta), 80.3A (Tc) 5W (Ta), 57W (Tc) Surface Mount PowerPAK® SO-8
Datasheet	SIR186LDP-T1-RE3 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Transistors>FETs, MOSFETs>Single FETs, MOSFETs
Mfr	Vishay
Series	TrenchFET® Gen IV
Package	Tape & Reel
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	23.8A (Ta), 80.3A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	4.4mOhm @ 15A, 10V
Vgs(th) (Max) @ Id	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	48 nC @ 10 V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	1980 pF @ 30 V
FET Feature	-
Power Dissipation (Max)	5W (Ta), 57W (Tc)
Temperature Range - Operating	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PowerPAK® SO-8
Package / Case	PowerPAK® SO-8
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN	EAR99
HTSUS	8541.29.0095
Standard Package	3,000 pcs
Win Source Part Number	1383442-SIR186LDP-T1-RE3
Ultra Librarian 3D Model	Ultra Librarian SIR186LDP-T1-RE3 CAD Model

Alternative Products

Description

The 1383442-SIR186LDP-T1-RE3 is an N-channel MOSFET (Metal Oxide Semiconductor Field-Effect Transistor) from the TrenchFET Gen IV series by Vishay.

Drain-to-Source Voltage: 60V
Continuous Drain Current (25°C Ta): 23.8A
Continuous Drain Current (25°C Tc): 80.3A
On-Resistance (Max): 4.4mOhm @ 15A and 10V
Gate Threshold Voltage: 2.5V @ 250µA
Mounting: Surface Mount
Package: PowerPAK SO-8
Gate Charge: 48nC @ 10V
Input Capacitance: 1980pF @ 30V
Temperature Range: -55°C to 150°C
