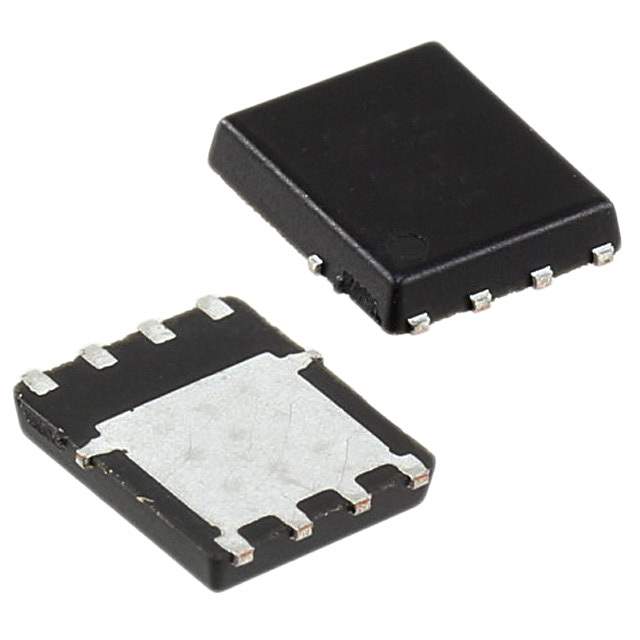

SIR690DP-T1-GE3

Name: SIR690DP-T1-GE3
Brand: Vishay
SKU: 1003041
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SIR690DP-T1-GE3
Manufacturer	Vishay
Catalog	Transistors - FETs, MOSFETs - RF
Description	MOSFET N-CH 200V 34.4A PPAK SO-8 / N-Channel 200 V 34.4A (Tc) 104W (Tc) Surface Mount PowerPAK® SO-8
Datasheet	SIR690DP-T1-GE3 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Mfr	Vishay Siliconix
Series	ThunderFET®
Package	Tape & Reel
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	200 V
Current - Continuous Drain (Id) @ 25°C	34.4A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	7.5V, 10V
Rds On (Max) @ Id, Vgs	35mOhm @ 20A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	37 nC @ 7.5 V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	1935 pF @ 100 V
Power Dissipation (Max)	104W (Tc)
Temperature Range - Operating	-55°C ~ 150°C (TJ)
Mounting	SMD (SMT)
Supplier Device Package	PowerPAK® SO-8
Package / Case	PowerPAK® SO-8
Base Product Number	SIR690
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8541.29.0095
Other Names	SIR690DP-T1-GE3DKR,SIR690DP-T1-GE3TR,SIR690DP-T1-GE3CT
Standard Package	3,000
Win Source Part Number	1003041-SIR690DP-T1-GE3
Ultra Librarian 3D Model	Ultra Librarian SIR690DP-T1-GE3 CAD Model

Alternative Products

Description

The SIR690DP-T1-GE3 electronic component is a high power MOSFET designed for use in various electronic devices, including computers, mobile phones, and other digital devices.

Manufacturer: Vishay Siliconix
Maximum Power Dissipation: 104W (Tc)
Maximum Gate Charge: 37 nC @ 7.5 V
Package: PowerPAK® SO-8
Supply and Demand: Balanced
