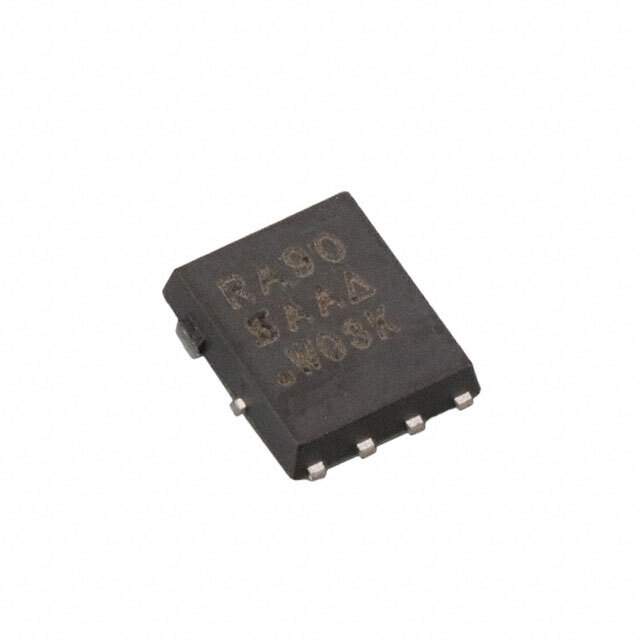

SIRA90DP-T1-RE3 Real Image
Same model may have multiple batches, images only for reference.

SIRA90DP-T1-RE3

Part No SIRA90DP-T1-RE3
Manufacturer Vishay
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 30V 100A PPAK SO-8  /  N-Channel 30 V 100A (Tc) 104W (Tc) Surface Mount PowerPAK® SO-8
Datasheet
SIRA90DP-T1-RE3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Mfr Vishay Siliconix
Package Tape & Reel
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 30 V
Current - Continuous Drain (Id) @ 25°C 100A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Rds On (Max) @ Id, Vgs 0.8mOhm @ 20A, 10V
Vgs(th) (Max) @ Id 2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 153 nC @ 10 V
Vgs (Max) +20V, -16V
Input Capacitance (Ciss) (Max) @ Vds 10180 pF @ 15 V
Power Dissipation (Max) 104W (Tc)
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting SMD (SMT)
Supplier Device Package PowerPAK® SO-8
Package / Case PowerPAK® SO-8
Base Product Number SIRA90
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.29.0095
Other Names SIRA90DP-T1-RE3DKR,SIRA90DP-T1-RE3TR,SIRA90DP-T1-RE3-ND,SIRA90DP-T1-RE3CT
Standard Package 3,000
Win Source Part Number 990219-SIRA90DP-T1-RE3
Ultra Librarian 3D Model Ultra Librarian SIRA90DP-T1-RE3 CAD Model

Description

The Vishay Siliconix SIRA90DP-T1-RE3 is an N-channel MOSFET with a drain to source voltage (Vdss) of 30 V and a continuous drain current (Id) of 100 A @ 25°C.

  • Manufacturer: Vishay Siliconix
  • Product Name: SIRA90DP-T1-RE3
  • Type: N-channel MOSFET
  • Vdss: 30 V
  • Id: 100 A @ 25°C
  • Rds On (Max) @ 20 A, 10 Vgs: 0.8 mΩ
  • Temperature Range: -55°C to 150°C
  • Qg @ 10 Vgs: 153 nC
  • Ciss @ 15 Vds: 10180 pF
  • RoHS: compliant and lead-free
