Same model may have multiple batches, images only for reference.

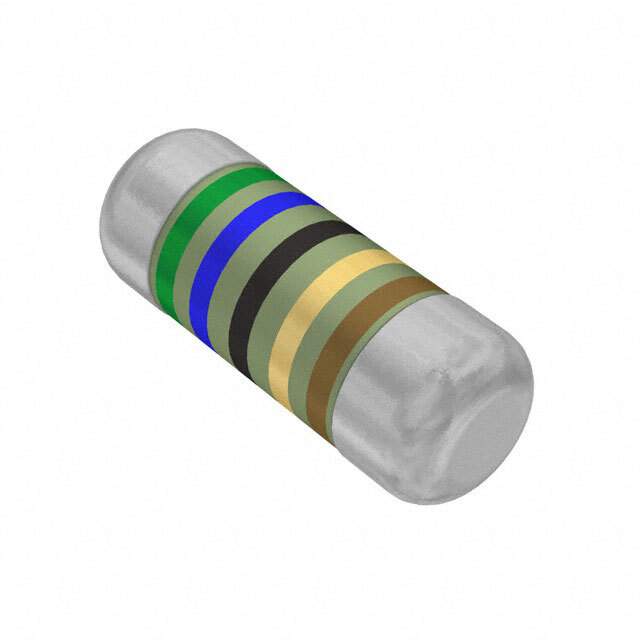

SMM02070C5609FBP00 Real Image
Same model may have multiple batches, images only for reference.

SMM02070C5609FBP00

Part No SMM02070C5609FBP00
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES 56 OHM 1% 1W MELF 0207
Datasheet
SMM02070C5609FBP00 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Resistors
Estimated Pruduction Lead Time 34 Weeks
Features 56 Ohms ±1% 1W Chip Resistor MELF, 0207 Anti-Sulfur, Automotive AEC-Q200, Pulse Withstanding Thin Film
Manufacturer Vishay
Series SMM0207
Package Reel - TR
Operating Temperature Range -55°C ~ 155°C
Package MELF, 0207
Case / Package MELF
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0040
Other Part Number 749-SMM02070C5609FBP00CT, 749-SMM02070C5609FBP00DKR, SMM02070C5609FBP00-ND, 749-SMM02070C5609FBP00TR
Quantity per package 1500
Popularity High
Supply and Demand Status Balance
Win Source Part Number 934382-SMM02070C5609FBP00
Ultra Librarian 3D Model Ultra Librarian SMM02070C5609FBP00 CAD Model

Description

The Vishay 934382-SMM02070C5609FBP00 is a chip resistor with a resistance of 56 Ohms and a power rating of 1W.

  • Resistance: 56 Ohms
  • Power Rating: 1W
  • Tolerance: ±1%
  • Features: Automotive AEC-Q200 and pulse withstanding thin film
  • Mounting: Surface mountable
  • Package: MELF, 0207 package
  • Operating Temperature Range: -55°C to 155°C
  • Supply and Demand Status: Balanced
  • Quantity per package: 1500 pieces per reel
  • Estimated Production Lead Time: 34 weeks
  • ECCN: EAR99
