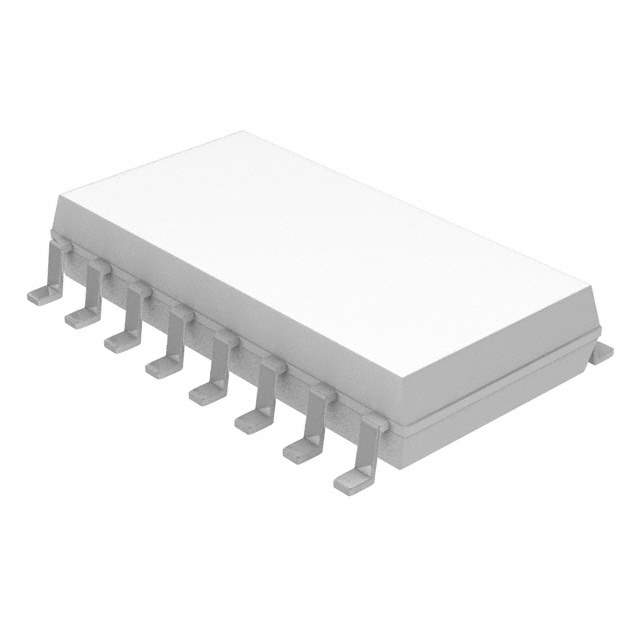

The SOMC160310K0GEA is a thick film, surface-mount resistor array manufactured by Vishay. It consists of multiple resistors in a single package, designed to save board space and simplify assembly in electronic circuits. These resistor networks are commonly used for pull-up/pull-down resistors, current limiting, and voltage dividers.

Applications

• Pull-up and Pull-down Resistors
• Current Limiting Resistors
• Voltage Dividers
• Logic Circuits
• Interface Circuits

Features

• Eight Isolated Resistors in a Single Package
• 10 kΩ Resistance Value
• ±2% Resistance Tolerance
• ±100 ppm/°C Temperature Coefficient
• Convex Termination Style
• Surface Mount Package (SOMC-16)
• RoHS Compliant

Benefits

• Reduces Board Space
• Simplifies Assembly
• Improves Reliability
• Cost-Effective Solution
• Excellent Stability

Additional Details

The SOMC160310K0GEA comes in a SOMC-16 (Small Outline Molded Chip) package. Each of the eight resistors within the array has a resistance value of 10 kΩ, with a tolerance of ±2%. The temperature coefficient of resistance (TCR) is ±100 ppm/°C, indicating the stability of the resistance value over temperature changes. The power rating per resistor is typically around 0.1 W, and the total power rating for the package is specified in the datasheet. Vishay's resistor arrays are designed for high-density circuit boards where space is limited. The convex termination style provides excellent solderability. Detailed specifications, including the working voltage, overload voltage, and insulation resistance, can be found in the product datasheet. Proper handling and storage are important to prevent damage and ensure reliable performance. The operating temperature range is usually from -55°C to +125°C.
