Same model may have multiple batches, images only for reference.

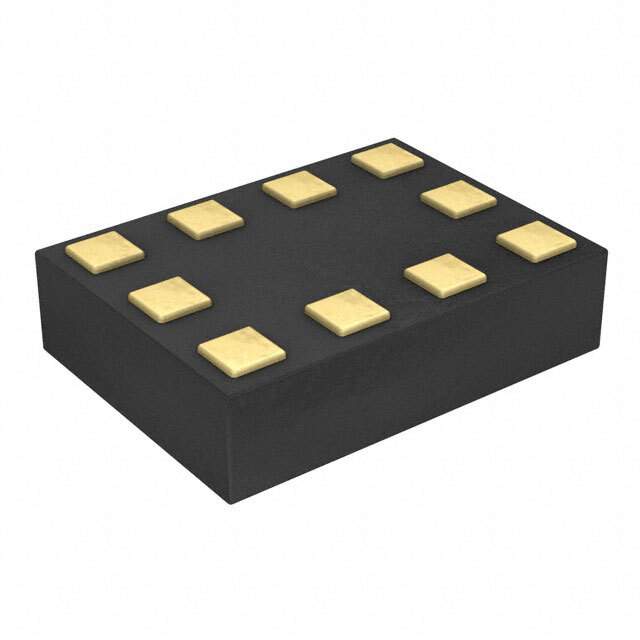

BGSA14RN10E6327XTSA1 Real Image
Same model may have multiple batches, images only for reference.

BGSA14RN10E6327XTSA1

Part No BGSA14RN10E6327XTSA1
Manufacturer Infineon Technologies
Catalog RF Antennas
Description IC RF SWITCH SP4T TSNP10-1  /  RF Switch IC General Purpose SP4T 50Ohm PG-TSNP-10-1
Datasheet
BGSA14RN10E6327XTSA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>RF Switches
Mfr Infineon Technologies
Package Tape & Reel
Product Status Obsolete
RF Type General Purpose
Circuit SP4T
Isolation 16dB
Insertion Loss 0.8dB
Test Frequency 2GHz, 1GHz
Impedance 50Ohm
Voltage - Supply 1.8V ~ 3.6V
Package / Case 10-XFQFN
Supplier Device Package PG-TSNP-10-1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names 2156-BGSA14RN10E6327XTSA1,BGSA14RN10E6327XTSA1-ND,BGSA14RN10E6327XTSA1CT,SP001406392,BGSA14RN10E6327XTSA1DKR,INFINFBGSA14RN10E6327XTSA1,BGSA14RN10E6327XTSA1TR
Standard Package 7,500
Win Source Part Number 1049212-BGSA14RN10E6327XTSA1
Ultra Librarian 3D Model Ultra Librarian BGSA14RN10E6327XTSA1 CAD Model

Description

The Infineon Technologies RF/IF and RFID RF switch is a SP4T circuit with a 50 Ohm impedance and 16dB isolation.

  • Circuit: SP4T
  • Impedance: 50 Ohm
  • Isolation: 16dB
  • Package: 10-XFQFN
  • Voltage Supply Range: 1.8V to 3.6V
  • Insertion Loss: 0.8dB
  • Test Frequencies: 2GHz and 1GHz
  • Type: General purpose RF switch
  • Packaging: Tape and reel
  • Standard Package: 7,500
  • Applications: RF and RFID
