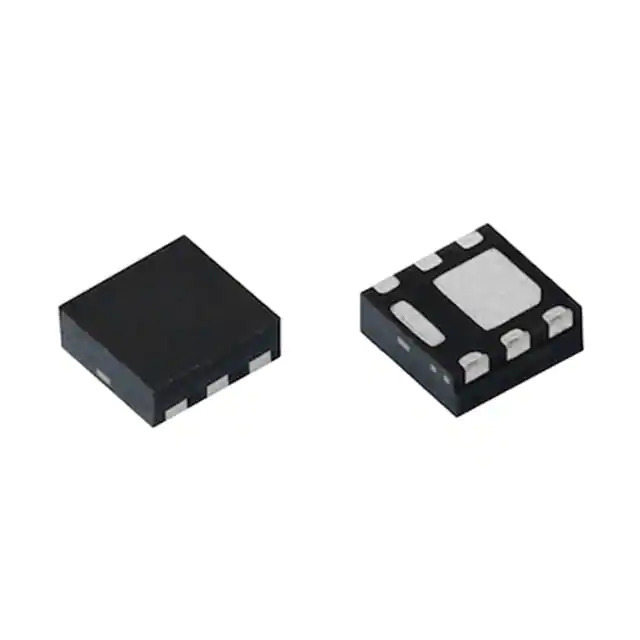

Same model may have multiple batches, images only for reference.

SQA600CEJW-T1_GE3

Name: SQA600CEJW-T1_GE3
Brand: Vishay
SKU: 1357303
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	SQA600CEJW-T1_GE3
Manufacturer	Vishay
Catalog	Transistors - FETs, MOSFETs - RF
Description	AUTOMOTIVE N-CHANNEL 80 V (D-S) / N-Channel 80 V 9A (Tc) 13.6W (Tc) Surface Mount, Wettable Flank PowerPAK®SC-70W-6
Datasheet	SQA600CEJW-T1_GE3 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products - Transistors - FETs, MOSFETs - Single FETs, MOSFETs
Mfr	Vishay Siliconix
Series	Automotive, AEC-Q101, TrenchFET®
Package	Tape & Reel
Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	80 V
Current - Continuous Drain (Id) @ 25°C	9A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	54.6mOhm @ 3A, 10V
Vgs(th) (Max) @ Id	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	9 nC @ 10 V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	540 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	13.6W (Tc)
Temperature Range - Operating	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount, Wettable Flank
Supplier Device Package	PowerPAK®SC-70W-6
Package / Case	6-PowerVDFN
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8541.29.0095
Win Source Part Number	1357303-SQA600CEJW-T1_GE3
Ultra Librarian 3D Model	Ultra Librarian SQA600CEJW-T1_GE3 CAD Model

Alternative Products

Description

The SQA600CEJW-T1_GE3 is an N-channel MOSFET from Vishay Siliconix.

Series: Automotive, AEC-Q101, TrenchFET®
Package: 6-PowerVDFN
Drain to Source Voltage: 80V
Continuous Drain Current: 9A
Maximum On-Resistance: 54.6mOhm @ 3A and 10V gate-source voltage
Gate Charge: 9nC @ 10V gate-source voltage
Input Capacitance: 540pF @ 25V drain-source voltage
Maximum Power Dissipation: 13.6W
Operating Temperature: -55°C to 175°C
Mounting Type: Surface Mount, Wettable Flank
RoHS Compliant: Yes
