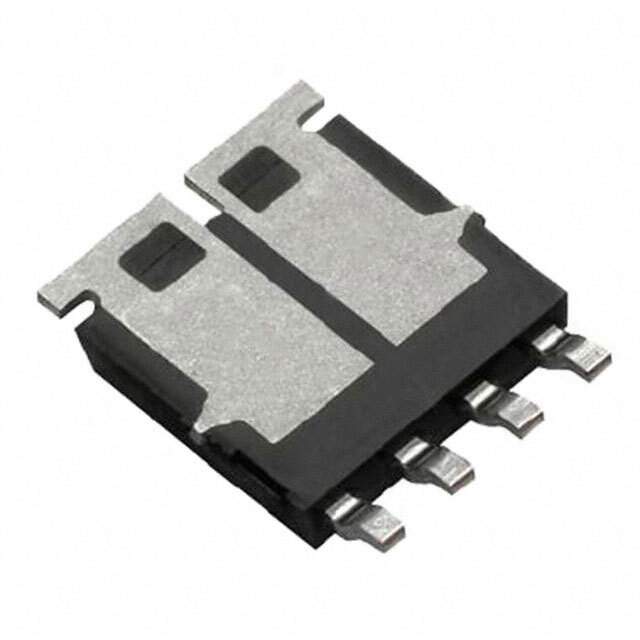

This Vishay MOSFET array is an automotive, AEC-Q101, TrenchFET® type with an N and P-Channel FET feature.

• Drain to Source Voltage (Vdss): 100V
• Continuous Drain Current (Id): 15A (Tc), 9.5A (Tc) @ 25°C
• Rds On (Max) @ Id, Vgs: 45mOhm @ 6A, 10V, 146mOhm @ 6A, 10V
• Vgs(th) (Max) @ Id: 2.5V @ 250µA
• Power: 27W
• Mounting Type: SMD (SMT)
• Package: PowerPAK® SO-8 Dual
• Standard Package: 3,000
• Gate Charge (Qg) (Max) @ Vgs: 20nC @ 10V, 15nC @ 10V
• Input Capacitance (Ciss) (Max) @ Vds: 650pF @ 25V, 600pF @ 25V
• Operating Temperature Range: -55°C to 175°C (TJ)
• ECCN: EAR99
• MSL Level: 1 (Unlimited)
• Packaging: Tape & Reel
