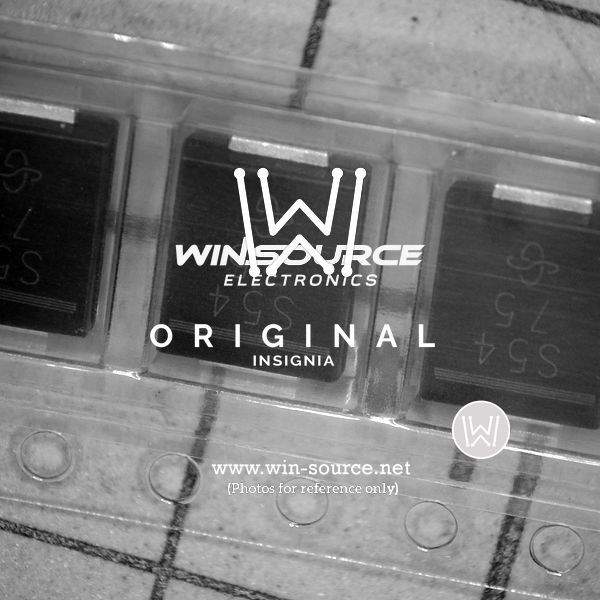

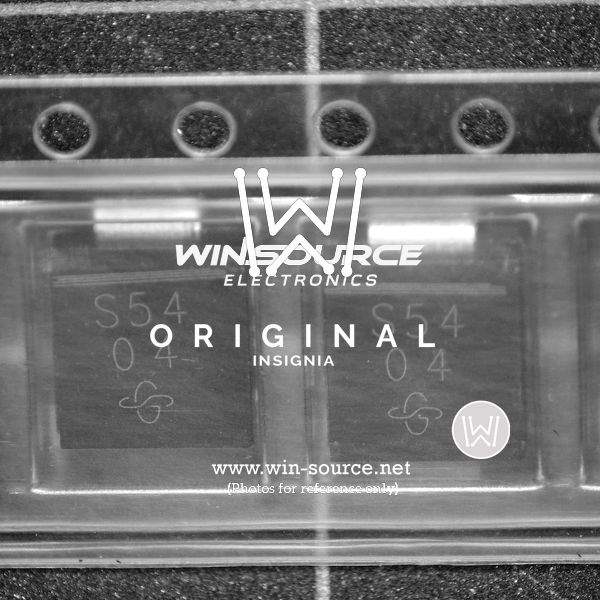

SSC54-E3/57T Vishay SSC54-E3/57T Real Image SSC54-E3/57T real image6477 SSC54-E3/57T Real Image
Same model may have multiple batches, images only for reference.
SSC54-E3/57T Vishay SSC54-E3/57T Real Image SSC54-E3/57T real image6477 SSC54-E3/57T Real Image
SSC54-E3/57T Vishay SSC54-E3/57T Real Image SSC54-E3/57T real image6477 SSC54-E3/57T Real Image
Same model may have multiple batches, images only for reference.

SSC54-E3/57T

Part No SSC54-E3/57T
Manufacturer Vishay
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 40V 5A DO214AB
Datasheet
SSC54-E3/57T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging Reel - TR
Status Active
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 40V
Current - Average Rectified (Io) 5A
Voltage - Forward (Vf) (Max) @ If 490mV @ 5A
Speed(Frequency) Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 500μA @ 40V
Mounting SMD (SMT)
Case / Package DO-214AB, (SMC)
Operating Temperature - Junction -65°C to 150°C
Win Source Part Number 030860-SSC54-E3/57T
Family Name SSC54
Introduction Date January 00, 1900
ECCN EAR99
Country of Origin China
Halogen Free Not Compliant
Estimated EOL Date 2023
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Application Field Used in Power Management, Safety
Ultra Librarian 3D Model Ultra Librarian SSC54-E3/57T CAD Model

Description

The Vishay SSC54-E3/57T from Vishay is a Schottky diode with a maximum DC reverse voltage of 40V and an average rectified current of 5A.

  • Forward Voltage: 490mV @ 5A
  • Reverse Leakage Current: 500μA @ 40V
  • Type: SMD (SMT)
  • Package: DO-214AB (SMC)
  • Recovery Speed: 200mA (Io)
  • Operating Temperature Range: -65°C to 150°C
  • Applications: Power management and safety
  • Supply and Demand Status: Limited
  • Alternative Parts: SSC54LHE3_A/H, SSC54LHE3_A/I, and SSC54LHE3/57T
