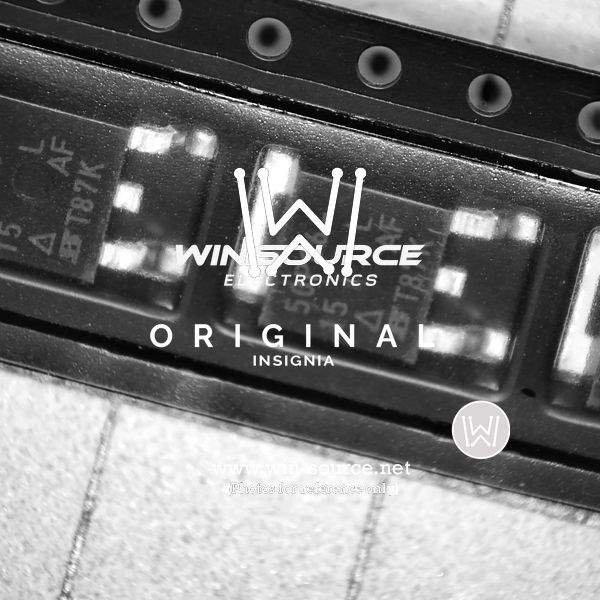

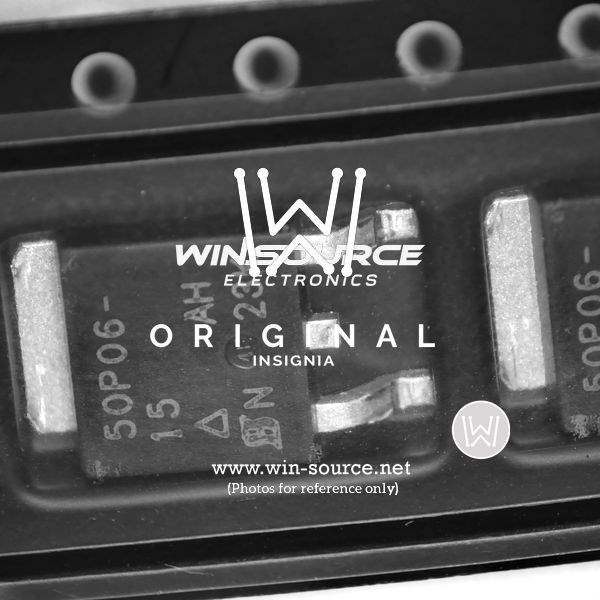

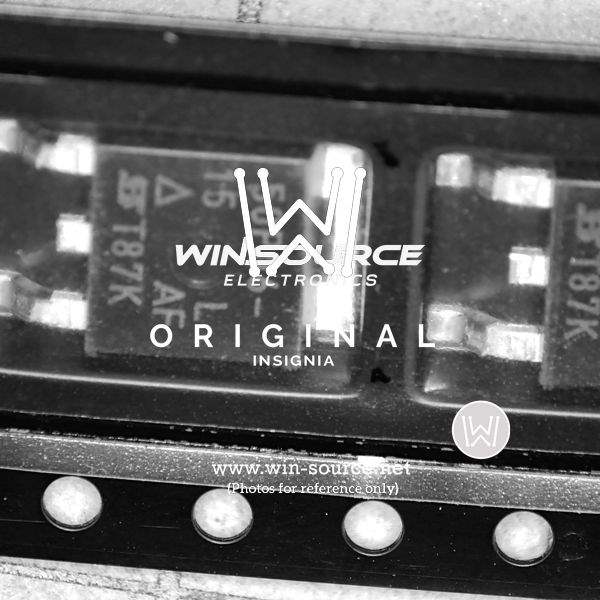

SUD50P06-15L-E3 Real Image SUD50P06-15L-E3 real image6983 SUD50P06-15L-E3 Real Image1 SUD50P06-15L-E3 Real Image2 SUD50P06-15L-E3 Real Image3
Same model may have multiple batches, images only for reference.
SUD50P06-15L-E3 Real Image SUD50P06-15L-E3 real image6983 SUD50P06-15L-E3 Real Image1 SUD50P06-15L-E3 Real Image2 SUD50P06-15L-E3 Real Image3
SUD50P06-15L-E3 Real Image SUD50P06-15L-E3 real image6983 SUD50P06-15L-E3 Real Image1 SUD50P06-15L-E3 Real Image2 SUD50P06-15L-E3 Real Image3
Same model may have multiple batches, images only for reference.

SUD50P06-15L-E3

Part No SUD50P06-15L-E3
Manufacturer Vishay
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET P-CH 60V 50A TO252
Datasheet
SUD50P06-15L-E3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging Reel - TR
Status Active
Polarity P-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 60V
Continuous Drain Current at 25°C 50A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Gate-Source Threshold Voltage 3V @ 250μA
Max Gate Charge 165nC @ 10V
Max Input Capacitance 4950pF @ 25V
Maximum Gate-Source Voltage ±20V
Power Dissipation (Max) 3W (Ta), 136W (Tc)
Maximum Rds On at Id,Vgs 15 mOhm @ 17A, 10V
Temperature Range - Operating -55°C to 175°C (TJ)
Mounting SMD (SMT)
Case / Package TO-252, (D-Pak)
Dimension TO-252-3, DPak (2 Leads + Tab), SC-63
Win Source Part Number 136400-SUD50P06-15L-E3
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Industrial, Power Management
Quantity per package 2k pcs
Ultra Librarian 3D Model Ultra Librarian SUD50P06-15L-E3 CAD Model

Description

The Vishay electronic component is a MOSFET transistor that is designed for discrete semiconductor products.

  • Polarity: P-channel polarity
  • Maximum Drain-Source Breakdown Voltage: 60V
  • Maximum Continuous Drain Current: 50A @ 25°C
  • Gate-Source Threshold Voltage: 3V @ 250μA
  • Supply and Demand Status: limited
