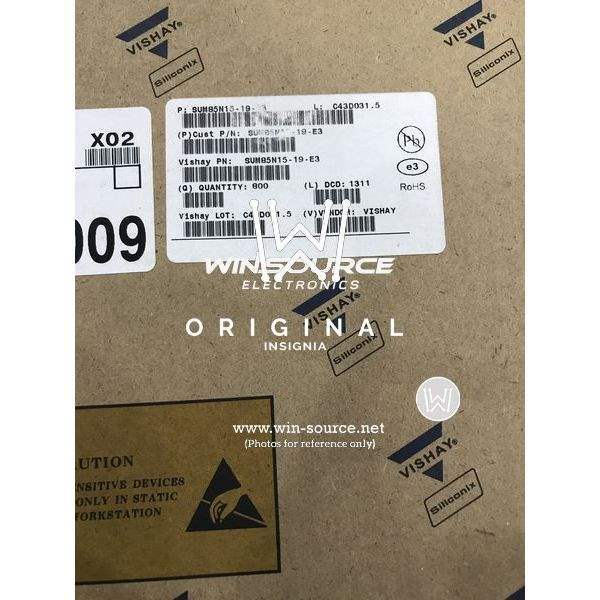

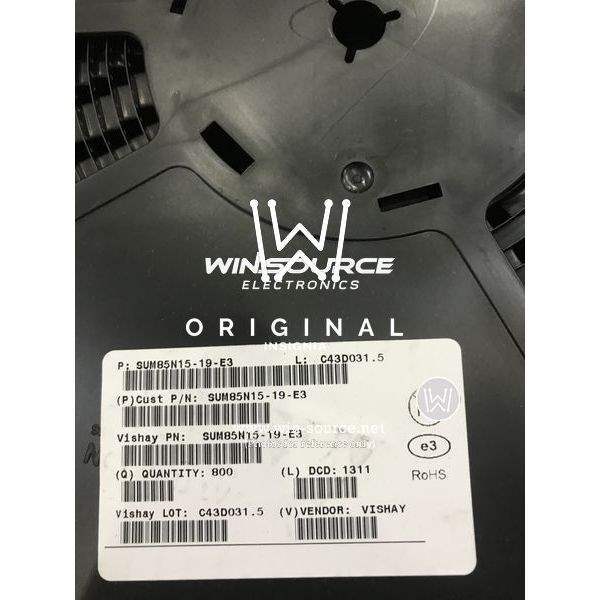

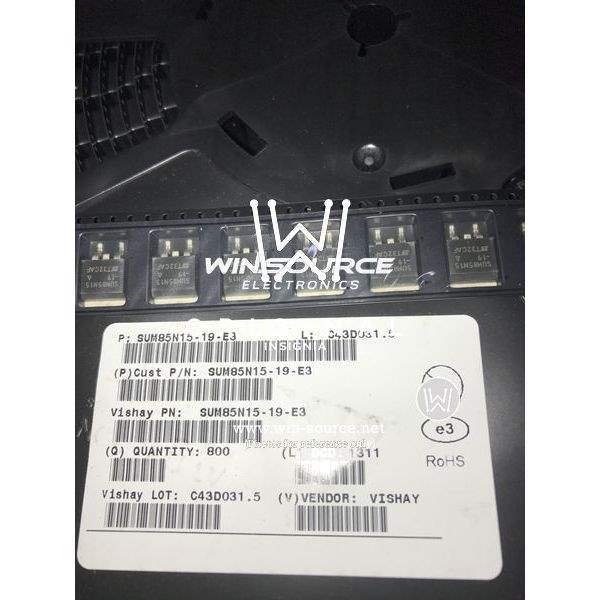

SUM85N15-19-E3 Vishay SUM85N15-19-E3 Real Image SUM85N15-19-E3 label picture SUM85N15-19-E3 label picture 2 SUM85N15-19-E3 real image
Same model may have multiple batches, images only for reference.
SUM85N15-19-E3 Vishay SUM85N15-19-E3 Real Image SUM85N15-19-E3 label picture SUM85N15-19-E3 label picture 2 SUM85N15-19-E3 real image
SUM85N15-19-E3 Vishay SUM85N15-19-E3 Real Image SUM85N15-19-E3 label picture SUM85N15-19-E3 label picture 2 SUM85N15-19-E3 real image
Same model may have multiple batches, images only for reference.

SUM85N15-19-E3

Part No SUM85N15-19-E3
Manufacturer Vishay
Catalog Transistors - FETs, MOSFETs - RF
Description Trans MOSFET N-CH 150V 85A Automotive 3-Pin(2+Tab) D2PAK / MOSFET N-CH 150V 85A D2PAK
Datasheet
SUM85N15-19-E3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging Reel - TR
Status Active
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 150V
Continuous Drain Current at 25°C 85A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V
Gate-Source Threshold Voltage 4V @ 250μA
Max Gate Charge 110nC @ 10V
Max Input Capacitance 4750pF @ 25V
Maximum Gate-Source Voltage ±20V
Power Dissipation (Max) 3.75W (Ta), 375W (Tc)
Maximum Rds On at Id,Vgs 19 mOhm @ 30A, 10V
Temperature Range - Operating -55°C to 175°C (TJ)
Mounting SMD (SMT)
Case / Package TO-263 (D2Pak)
Dimension TO-263-3, D2Pak (2 Leads + Tab), TO-263AB
Win Source Part Number 031624-SUM85N15-19-E3
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Family Name SUM85N15-19
Introduction Date October 16, 2001
ECCN EAR99
Country of Origin China
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian SUM85N15-19-E3 CAD Model

Description

The Vishay SUM85N15-19-E3 is a MOSFET that has a packaging of reel - TR and mounting of SMD (SMT).

  • Power Dissipation: 3.75W (Ta), 375W (Tc)
  • Category: discrete semiconductor products
  • Supply and Demand Status: currently sufficient
  • Perfect for: applications that require high-speed switching and low power consumption
  • Essential for: any power supply system
