Same model may have multiple batches, images only for reference.

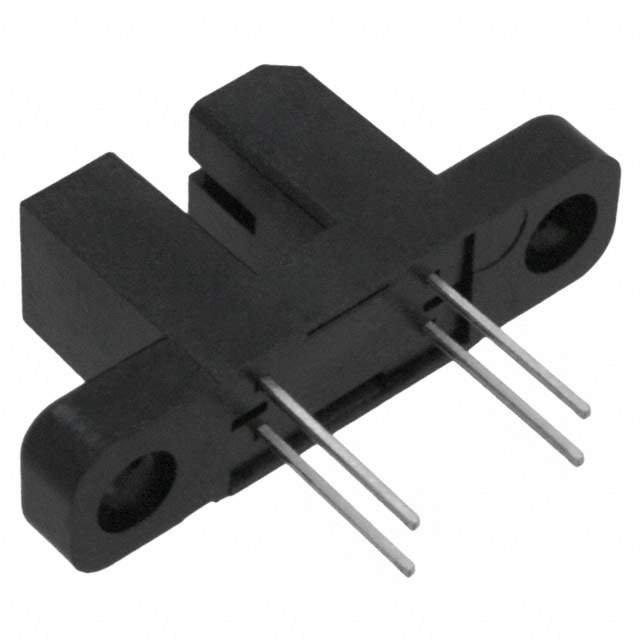

TCST2103 Real Image
Same model may have multiple batches, images only for reference.

TCST2103

Part No TCST2103
Manufacturer Vishay
Catalog Optical Sensors - Photointerrupters - Slot Type - Transistor Output
Description Photointerrupter Transmissive 3.1mm Phototransistor 4-Pin Tube / SENSR OPTO SLOT 3.1MM TRANS THRU
Datasheet
TCST2103 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Vishay
Packaging Tube/Rail
Status Active
Sensing Distance 3.1mm
Sensing Method Transmissive
Continuous forward current- Max 60mA
Maximum Current Collector 4mA
VCEO Maximum Collector-Emitter Breakdown Voltage 70V
Response Time 10μs, 8μs
Temperature Range - Operating -55°C to 85°C
Mounting Through Hole
Type Unamplified
Win Source Part Number 092928-TCST2103
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name TCST2103
Introduction Date December 02, 2005
ECCN EAR99
Country of Origin Philippines
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian TCST2103 CAD Model

Description

The TCST2103 is a transmissive sensor manufactured by Vishay.

  • Part Number: TCST2103
  • Manufacturer: Vishay
  • Type: transmissive sensor
  • Sensing Distance: 3.1mm
  • Response Time: 10μs, 8μs
  • Amplification: unamplified
  • Package: tube/rail
  • Mounting: through-hole
  • Applications: sensors and transducers
