Same model may have multiple batches, images only for reference.

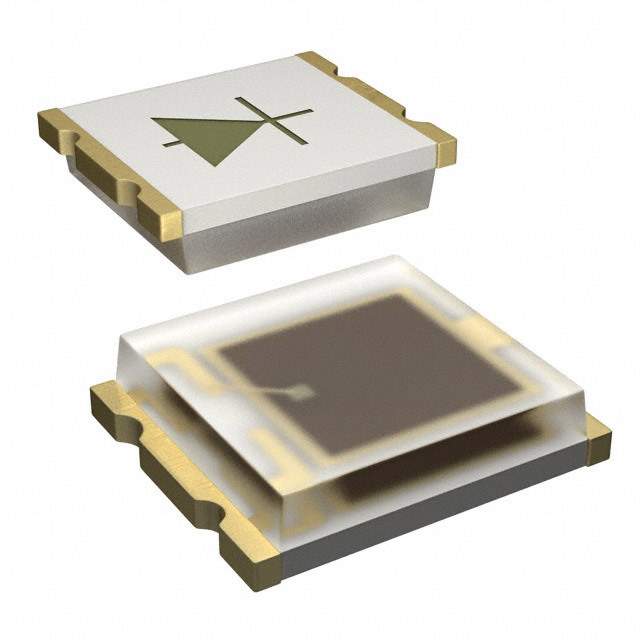

TEMD5510FX01 Real Image
Same model may have multiple batches, images only for reference.

TEMD5510FX01

Part No TEMD5510FX01
Manufacturer Vishay
Catalog Optical Sensors - Photodiodes
Description Light to Digital Ambient Light Sensor Automotive 2-Pin SMD T/R / PHOTODIODE PIN HI SPEED MINI SMD
Datasheet
TEMD5510FX01 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Vishay
Packaging Reel - TR
Status Active
Wavelength 540nm
Spectral Range 430nm to 610nm
Diode Type PIN
Voltage - DC Reverse (Vr) (Max) 16V
Current - Dark (Typ) 2nA
Active Area 7.5mm²
Viewing Angle 130°
Temperature Range - Operating -40°C to 100°C
Mounting SMD (SMT)
Win Source Part Number 057053-TEMD5510FX01
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Application Field Used in Sensing & Instrumentation, Consumer Electronics
Family Name TEMD5510FX01
Introduction Date August 28, 2007
Halogen Free Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian TEMD5510FX01 CAD Model

Description

The Vishay TEMD5510FX01 is a high-quality electronic component that is designed to deliver reliable performance.

This component is manufactured by Vishay, a leading company in the electronic components industry. The supply and demand status of this component is sufficient. The TEMD5510FX01 is suitable for use in sensing and instrumentation, as well as consumer electronics.
