Same model may have multiple batches, images only for reference.

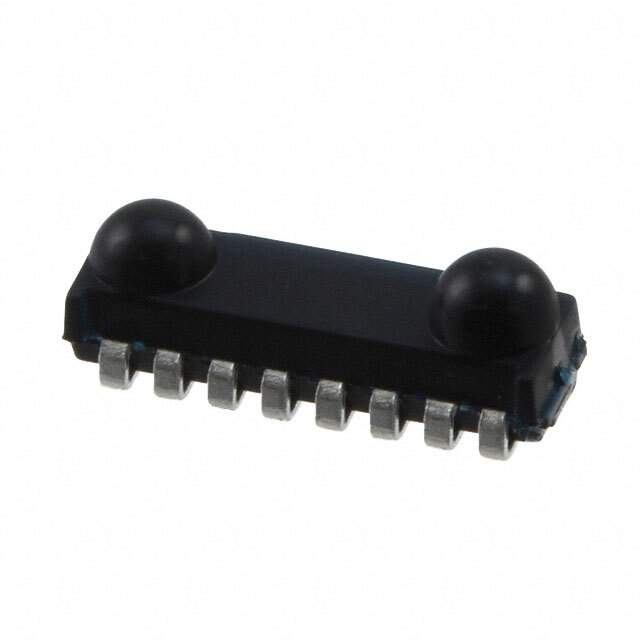

TFDU4301-TT1 Real Image
Same model may have multiple batches, images only for reference.

TFDU4301-TT1

Part No TFDU4301-TT1
Manufacturer Vishay
Catalog IrDA Transceiver Modules
Description TXRX IRDA 115.2KB 2.5MM 8SMD
Datasheet
TFDU4301-TT1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Vishay
Packaging Reel - TR
Status Active
Data Rate 115.2kbs (SIR)
Supply Voltage 2.4 V to 5.5 V
Idle Current, Typ @ 25°C 100μA
Link Range, Low Power 70cm
Orientation Top View
Temperature Range - Operating -30°C to 85°C
Size 2.5mm
Standards IrPHY 1.0
Shutdown Yes
Win Source Part Number 032103-TFDU4301-TT1
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian TFDU4301-TT1 CAD Model

Description

The TFDU4301-TT1 is an infrared transceiver module manufactured by Vishay.

  • Application: short-range wireless data communication in applications such as remote control, data transfer, and sensor applications
  • Data Rate: 115.2 kbps
  • Link Range: 70 cm
  • Supply Voltage Range: 2.4 V to 5.5 V
  • Idle Current: 100 μA
  • Compliant with: IrPHY 1.0 standards
  • Shutdown Feature: yes
  • Category: sensor/transducer
  • Status: active
  • Supply and Demand Status: balanced
