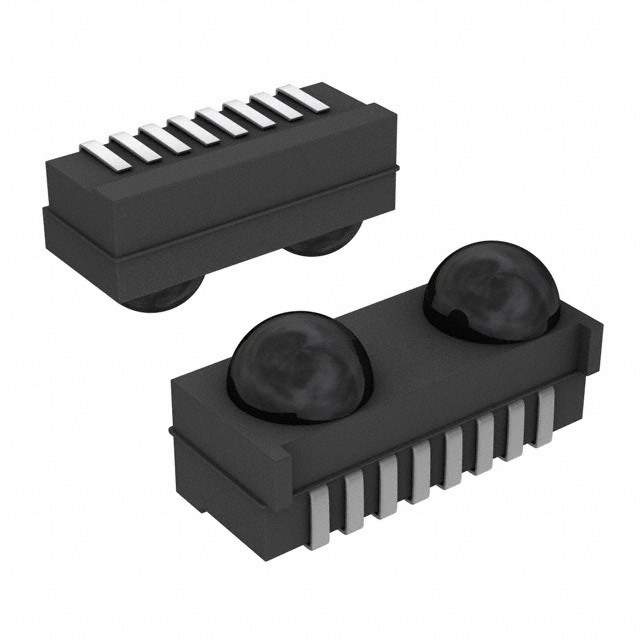

TFDU6103-TR3 Real Image
Same model may have multiple batches, images only for reference.

TFDU6103-TR3

Part No TFDU6103-TR3
Manufacturer Vishay
Catalog IrDA Transceiver Modules
Description TXRX IRDA 4MBIT 4MM SIDE 8-SMD
Datasheet
TFDU6103-TR3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Vishay
Packaging Reel - TR
Status Obsolete(EOL)
Data Rate 4Mbs (FIR)
Supply Voltage 2.4 V to 5.5 V
Idle Current, Typ @ 25°C 2mA
Link Range, Low Power 1m
Orientation Side View
Temperature Range - Operating -25°C to 85°C
Size 9.7mm x 4.7mm x 4.0mm
Standards IrPHY 1.4
Shutdown Yes
Win Source Part Number 032104-TFDU6103-TR3
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian TFDU6103-TR3 CAD Model

Description

This electronic component is manufactured by Vishay and has a part number of 032104-TFDU6103-TR3.

  • Packaging: reel - TR
  • Orientation: side view
  • Data Rate: 4Mbs (FIR)
  • Size: 9.7mm x 4.7mm x 4.0mm
  • Supply Voltage: 2.4V to 5.5V
  • Complies with: IrPHY 1.4 standards
  • Idle Current: 2mA @ 25°C
  • Link Range: 1m for low power
  • Shutdown feature: yes
  • Categories: sensors and transducers
  • Status: obsolete (EOL)
  • Temperature Range: -25°C to 85°C
  • Usage: commonly-used part
  • Popularity: high
  • Fake product threat: 34% in the open market
  • Supply and Demand: limited
