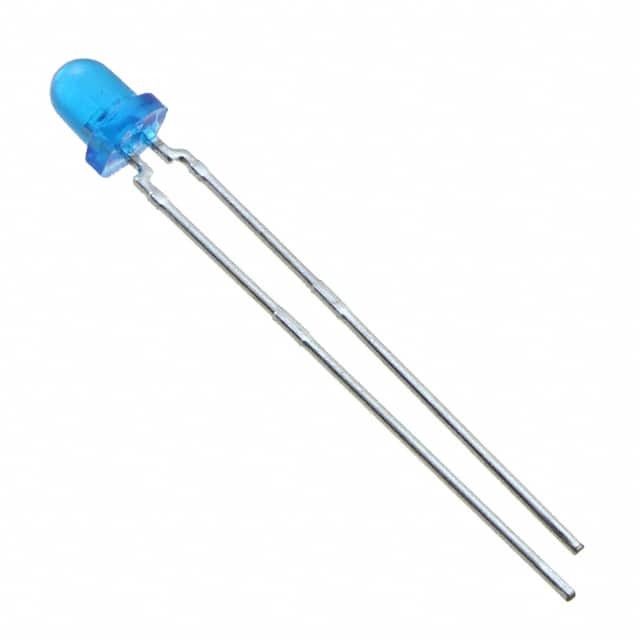

Same model may have multiple batches, images only for reference.
TSUS4300

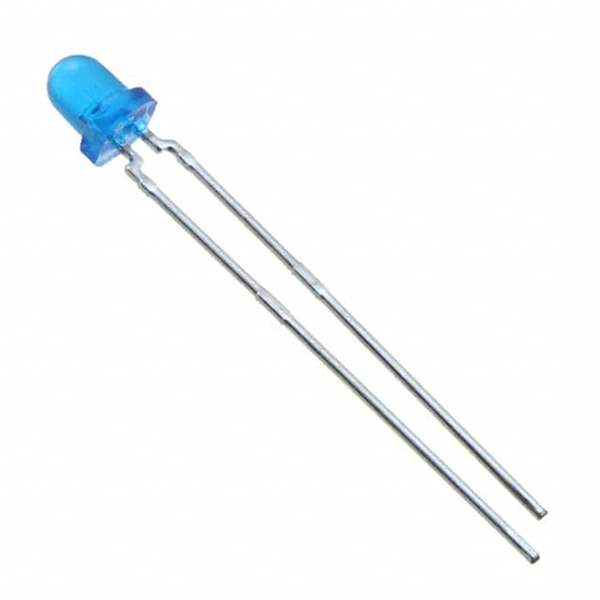

Same model may have multiple batches, images only for reference.

TSUS4300

Part No TSUS4300
Manufacturer Vishay
Catalog Infrared, UV, Visible Emitters
Description EMITTER IR 950NM 100MA RADIAL
Datasheet
TSUS4300 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics - LED Emitters - Infrared, UV, Visible
Mfr Vishay
Package Bulk
Product Status Obsolete
Type Infrared (IR)
Current - DC Forward (If) (Max) 100mA
Radiant Intensity (Ie) Min @ If 7mW/sr @ 100mA
Wavelength 950nm
Voltage - Forward (Vf) (Typ) 1.3V
Viewing Angle 32°
Orientation Top View
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Through Hole
Package / Case Radial
Base Product Number TSUS4300
Standard Package 5,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 850314-TSUS4300
Ultra Librarian 3D Model Ultra Librarian TSUS4300 CAD Model

Description

The 850314-TSUS4300 is an infrared LED emitter with a wavelength of 950nm. It is manufactured by Vishay.

  • Wavelength: 950nm
  • Forward Voltage (Vf): 1.3V
  • Forward Current (If): 100mA
  • Viewing Angle: 32°
  • Radiant Intensity: 7mW/sr @ 100mA
  • Mounting Type: Through-Hole
  • View Orientation: Top View
  • Package: Bulk
  • Packaging Quantity: 5,000 pcs
  • Operating Temperature: -40°C to 85°C
