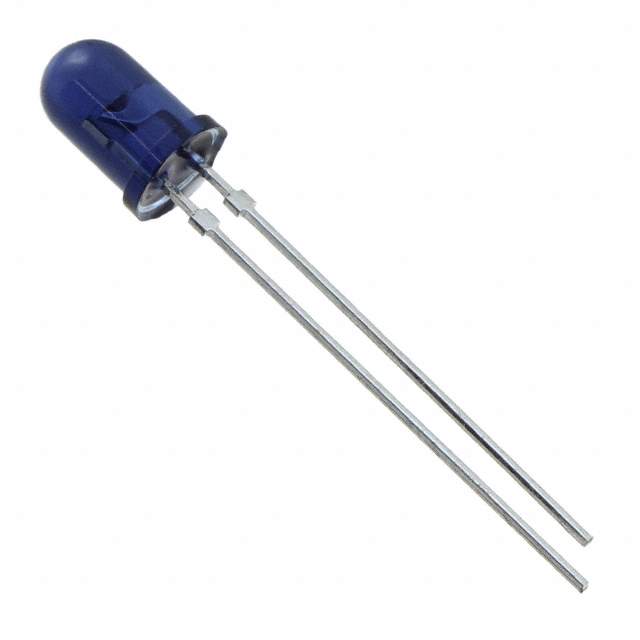

Same model may have multiple batches, images only for reference.

TSUS5402

Part No	TSUS5402
Manufacturer	Vishay
Catalog	Infrared, UV, Visible Emitters
Description	Infrared Emitter 950nm 190mW/sr Circular Top Mount 2-Pin T-1 3/4 / EMITTER IR 950NM 150MA RADIAL
Datasheet	TSUS5402 Datasheet
Sample

Shipping Information

Shipped from	HK warehouse
Expected Shipping Date	Ship today if order in (HKT)
Supplier Lead-Time	Call for availability
Estimate shipping fee	Enter your destination to get a shipping estimate Estimate Shipping Fee

Pricing & Ordering $0.176

Quantity

Unit Price

Ext. Price

230+

$0.2190

$50.370

560+

$0.1800

$100.800

865+

$0.1740

$150.510

1,195+

$0.1680

$200.760

1,535+

$0.1630

$250.205

2,055+

$0.1460

$300.030

* The above prices does not include taxes and freight rates, which will be calculated on the order pages.

Availability: 341,935 pieces

MOQ: 230 pcs

Order Increment : 1 pcs

Qty:

Ordering Guidelines *Need More Quantity? *Request a Bulk Quantity Quotation?

Products specifications

ECAD Module
Categories	Optoelectronics
Manufacturer	Vishay
Packaging	Bulk
Status	Active
Type	Infrared (IR)
Continuous forward current- Max	150mA
Radiant Intensity (Ie) Min @ If	15mW/sr @ 100mA
Wavelength	950nm
Forward Voltage	2.2V
Viewing Angle	44°
Orientation	Top View
Temperature Range - Operating	-40°C to 85°C (TA)
Mounting	Through Hole
Dimension	Radial
Win Source Part Number	213569-TSUS5402
Is this a common-used part?	Yes
Popularity	High
Fake Threat In the Open Market	65 pct.
Supply and Demand Status	Sufficient
Family Name	TSUS5402
Introduction Date	June 02, 2004
ECCN	EAR99
Country of Origin	China, Philippines
Estimated EOL Date	2026
Alternative Parts (Cross-Reference)	SFH485-2; SFH 485-2; JGN5306X; SFH 4550-GW;

Description

The Vishay TSUS5402 is an active infrared (IR) optoelectronic component that has a viewing angle of 44 degrees and a wavelength of 950nm. This component has a radial dimension and is mounted through hole. The TSUS5402 has a high popularity with sufficient supply and demand. Alternative parts for this component include SFH485-2, SFH 485-2, JGN5306X, and SFH 4550-GW.
