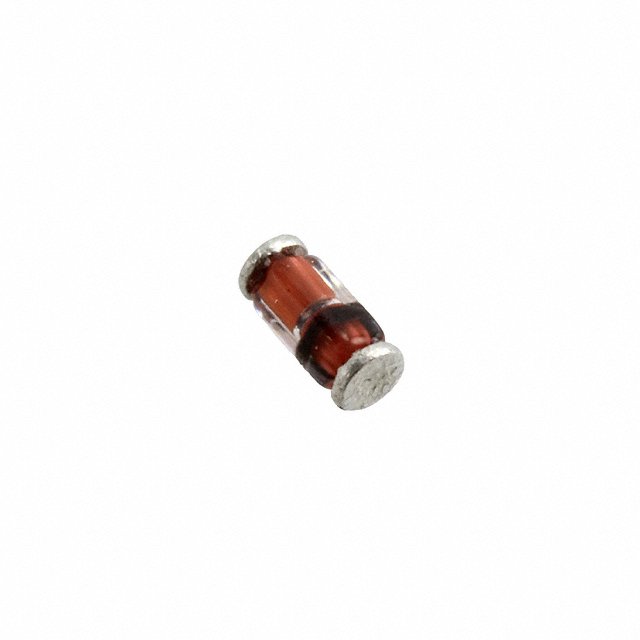

The TZS4697-GS08 is a Transient Voltage Suppressor (TVS) diode manufactured by Vishay. It is designed to protect sensitive electronic components from voltage transients induced by lightning, inductive load switching, and electrostatic discharge (ESD). This device is a surface-mount component and is commonly used in various applications where overvoltage protection is critical.

Applications:

• Protection of I/O Interfaces
• Voltage surge protection in consumer electronics
• Protection of sensitive equipment against ESD
• Overvoltage protection for communication lines
• Automotive electronics protection

Features:

• Excellent clamping capability
• Low incremental surge resistance
• Fast response time
• Typical IR less than 1 μA above 10 V
• High surge capability
• Glass passivated junction
• Surface mount component
• RoHS compliant

Benefits:

• Enhanced system reliability due to effective overvoltage protection
• Reduced component failures and downtime
• Compact design suitable for space-constrained applications
• Improved system immunity to transient events
• Compliance with industry safety standards

Technical Specifications:

The TZS4697-GS08 has a standoff voltage of approximately 46V and a breakdown voltage typically between 51.3V and 56.7V. It comes in a SMB (DO-214AA) package. The peak pulse power dissipation is a crucial parameter, defining the maximum surge energy the device can handle without failure. The clamping voltage is the voltage to which the TVS diode limits the surge voltage. Operating temperature ranges are usually specified and should be considered for application environments. The specific datasheet should be consulted for exact values and derating curves. This TVS diode also features low leakage current, ensuring minimal power loss during normal operation. It's designed to handle repetitive transient surges without degradation of its protective characteristics, contributing to long-term system reliability.
