Same model may have multiple batches, images only for reference.

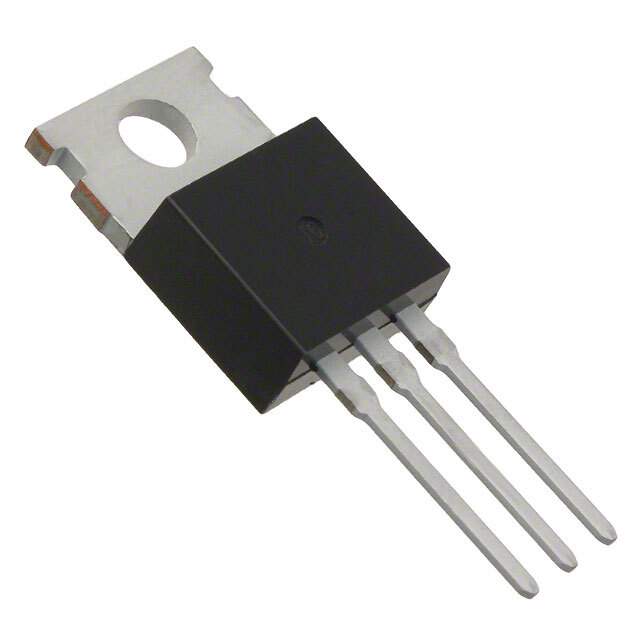

UGF12JT-E3/45 Real Image
Same model may have multiple batches, images only for reference.

UGF12JT-E3/45

Part No UGF12JT-E3/45
Manufacturer Vishay
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 600V 12A ITO220AC
Datasheet
UGF12JT-E3/45 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging Tube/Rail
Status Active
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 600V
Current - Average Rectified (Io) 12A
Voltage - Forward (Vf) (Max) @ If 1.75V @ 12A
Speed(Frequency) Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 50ns
Current - Reverse Leakage @ Vr 30μA @ 600V
Mounting Through Hole
Case / Package ITO-220AC
Operating Temperature - Junction -55°C to 150°C
Win Source Part Number 138205-UGF12JT-E3/45
Popularity Medium
Supply and Demand Status Limited
Quantity per package 50
Ultra Librarian 3D Model Ultra Librarian UGF12JT-E3/45 CAD Model

Description

Vishay's 138205-UGF12JT-E3/45 is a standard diode that comes in an ITO-220AC case/package.

  • Voltage Rating: 600V
  • Average Rectified Current: 12A
  • Forward Voltage: 1.75V @ 12A
  • Reverse Recovery Time: 50ns
  • Application: Discrete semiconductor products
  • Speed: Fast recovery speed of 200mA (Io)
  • Operating Temperature Range: -55°C to 150°C
  • Supply and Demand: Limited
  • Package: 50
