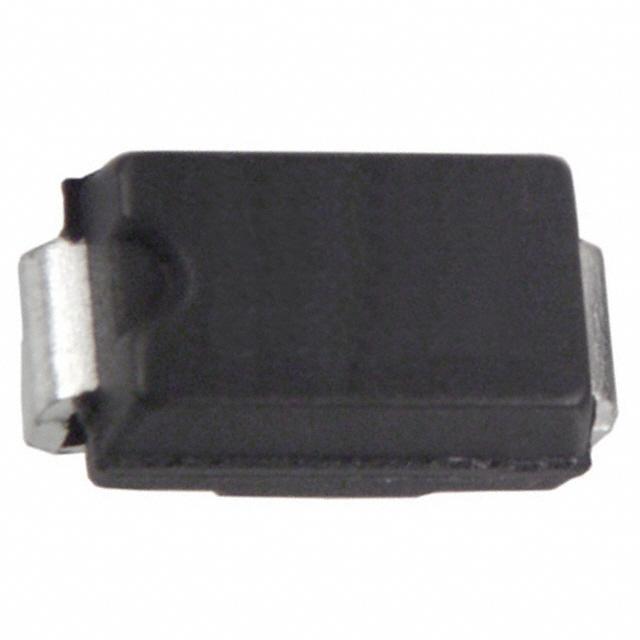

The US1G/61T is an ultrafast rectifier diode manufactured by Vishay. This diode is designed for applications requiring fast switching speeds and low forward voltage drop. The '/61T' likely refers to a specific manufacturing batch or packaging detail. Its compact size and efficient performance make it suitable for use in various power supply, inverter, and converter circuits.

Applications:

• High-frequency rectification
• Freewheeling diode in switching power supplies
• Inverters
• DC-DC converters
• Snubber circuits
• Polarity protection

Features:

• Ultrafast recovery time
• Low forward voltage drop
• High surge current capability
• Surface-mount package
• High reliability
• RoHS compliant

Benefits:

• Reduces switching losses and improves efficiency in high-frequency circuits.
• Minimizes power dissipation and heat generation.
• Withstands transient voltage spikes and surges.
• Enables compact and space-saving designs.
• Ensures long-term performance and reliability.
• Compliant with environmental regulations.

Technical Specifications:

The US1G/61T features a low forward voltage drop, typically around 0.85V to 1.0V at its rated forward current. The ultrafast recovery time, typically in the nanosecond range, is crucial for minimizing reverse recovery losses. The maximum repetitive peak reverse voltage (VRRM) and average forward current (IF(AV)) are key parameters to consider when selecting this diode for a specific application. These specifications, along with the surge current rating (IFSM), should be verified from the official Vishay datasheet. The diode is typically housed in a surface-mount package such as SMA or similar.

This ultrafast rectifier diode is designed for easy integration into surface-mount PCB assemblies. Proper thermal management is essential to ensure reliable operation at high currents. Consult the datasheet for recommended operating conditions and soldering guidelines. The US1G/61T offers a cost-effective solution for high-frequency rectification in a variety of power electronic applications. Its combination of fast switching speed, low forward voltage drop, and convenient packaging makes it a valuable component in modern power supply designs.
