The V40100PGW is a Schottky Barrier Rectifier manufactured by Vishay Semiconductors. This device is designed for high-frequency switching power supplies, freewheeling diodes, OR-ing diodes, and reverse polarity protection applications. It features a low forward voltage drop, high surge current capability, and operates at high junction temperatures.

Applications:

• Switching Mode Power Supplies (SMPS).
• Freewheeling Diodes.
• OR-ing Diodes.
• Reverse Polarity Protection.
• High-Frequency Rectification.

Features:

• Low Forward Voltage Drop.
• High Surge Current Capability.
• High Junction Temperature Operation.
• Guard Ring for Overvoltage Protection.
• Lead Free Finish, RoHS Compliant.

Benefits:

• Increases efficiency in power supplies by reducing power loss.
• Provides robust protection against current surges.
• Allows operation in high-temperature environments.
• Enhances reliability and protects against voltage spikes.
• Environmentally friendly and compliant with industry standards.

Technical Specifications:

• Repetitive Peak Reverse Voltage (VRRM): 100 V
• Average Forward Current (IF(AV)): 40 A
• Peak Forward Surge Current (IFSM): 250 A
• Forward Voltage (VF): 0.75 V at 20 A
• Operating Junction Temperature (Tj): -55 °C to +150 °C

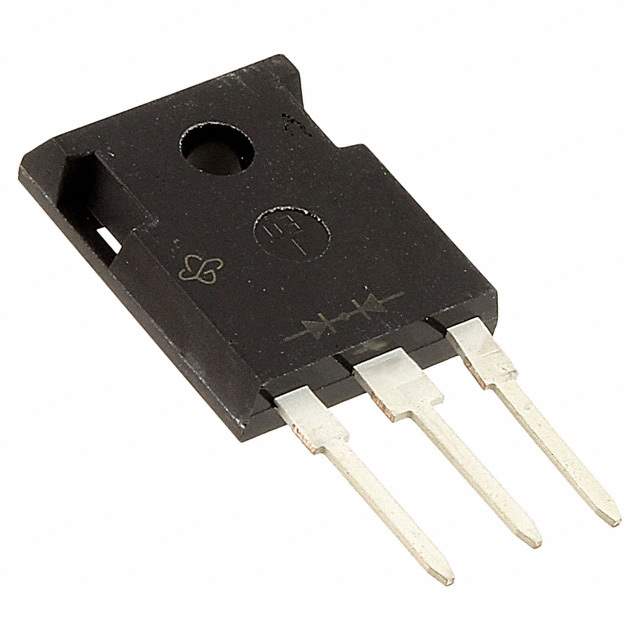

• Package: TO-247

The V40100PGW Schottky Barrier Rectifier is an ideal choice for applications requiring efficient and reliable rectification. Its low forward voltage drop and high surge current capability make it suitable for demanding power supply designs. The TO-247 package provides excellent thermal performance, ensuring reliable operation at high junction temperatures. The guard ring design provides added protection against overvoltage conditions, enhancing the overall robustness of the system.
