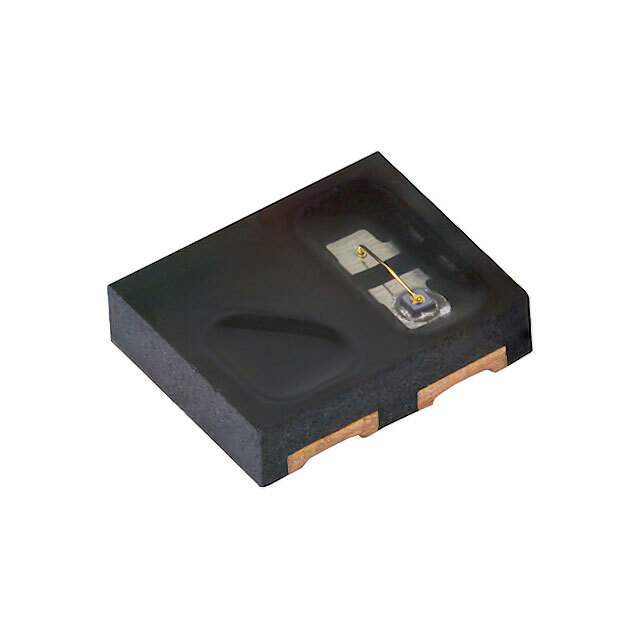

VCNT2025X01 Vishay Semiconductor Opto Division
Same model may have multiple batches, images only for reference.

VCNT2025X01

Part No VCNT2025X01
Manufacturer Vishay
Catalog Optical Sensors - Reflective - Analog Output
Description ANALOG OUTPUT REFLECTIVE SENSOR,
Datasheet
VCNT2025X01 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1203850-VCNT2025X01
Manufacturer Vishay Semiconductor Opto Division
Category Sensors, Transducers -Optical Sensors- Reflective - Analog Output
Package Tape & Reel (TR) Cut Tape (CT)
Product Status Product Status
Sensing Distance 0.012" ~ 0.177" (0.30mm ~ 4.50mm)
Response Time Response Time
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Operating Temperature -40°C ~ 110°C (TA)
Ultra Librarian 3D Model Ultra Librarian VCNT2025X01 CAD Model

Description

The VCNT2025X01 is a reflective sensor in a miniature SMD package. It has a compact construction where the emitting light source and the detector are arranged in the same plane. The operating infrared wavelength is 940 nm. The detector consists of a silicon phototransistor. The sensor analog output signal (photo current) is triggered by detection of reflected infrared light from a close by object. The sensor has a built in daylight blocking filter, which greatly suppresses disturbing ambient light and therefore increases signal to noise ratio.
