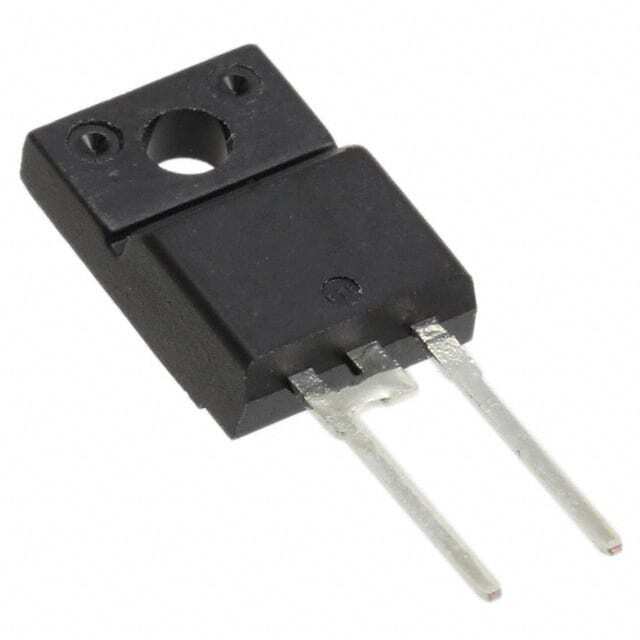

Same model may have multiple batches, images only for reference.
VS-10ETS12FPPBF
Same model may have multiple batches, images only for reference.

VS-10ETS12FPPBF

Part No VS-10ETS12FPPBF
Manufacturer Vishay
Catalog Diodes, Rectifiers - Single
Description DIODE GP 1.2KV 10A TO220ACFP / Diode 1200 V 10A Through Hole TO-220AC Full Pack
Datasheet
VS-10ETS12FPPBF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr Vishay
Package Tube
Product Status Obsolete
Technology Standard
Voltage - DC Reverse (Vr) (Max) 1200 V
Current - Average Rectified (Io) 10A
Voltage - Forward (Vf) (Max) @ If 1.1 V @ 10 A
Speed Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 50 µA @ 1200 V
Mounting Type Through Hole
Package / Case TO-220-2 Full Pack
Supplier Device Package TO-220AC Full Pack
Operating Temperature - Junction -40°C ~ 150°C
Base Product Number 10ETS12
Standard Package 50 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 853704-VS-10ETS12FPPBF
Ultra Librarian 3D Model Ultra Librarian VS-10ETS12FPPBF CAD Model

Description

The VS-10ETS12FPPBF is a single rectifier diode designed for standard recovery applications from Vishay.

  • Reverse Voltage Rating: 1200V
  • Average Rectified Current: 10A
  • Forward Voltage Drop: 1.1V @ 10A
  • Mounting Type: Through-Hole
  • Package: TO-220-2 Full Pack
