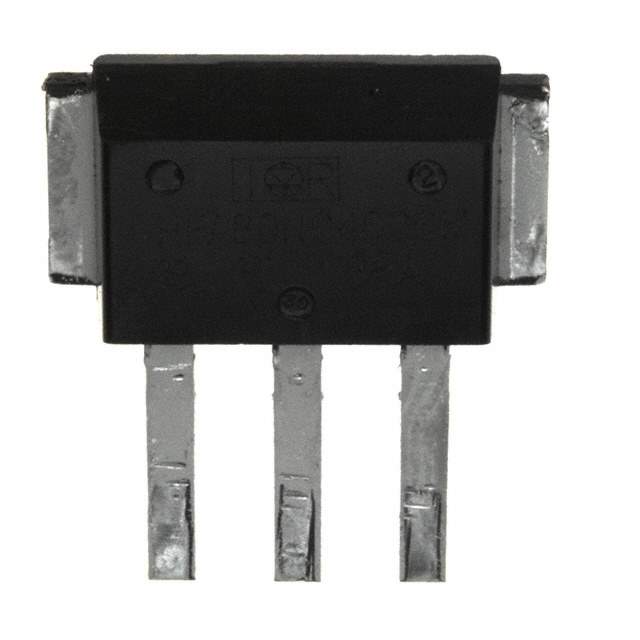

VS-115CNQ015ASMPBF Real Image
Same model may have multiple batches, images only for reference.

VS-115CNQ015ASMPBF

Part No VS-115CNQ015ASMPBF
Manufacturer Vishay
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY SCHOTTKY 15V D618SM
Datasheet
VS-115CNQ015ASMPBF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging Tube/Rail
Status Active
Diode Configuration 1 Pair Common Cathode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 15V
Current - Average Rectified (Io) (per Diode) 55A
Voltage - Forward (Vf) (Max) @ If 460mV @ 110A
Speed(Frequency) Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 20mA @ 15V
Operating Temperature - Junction 125°C (Max)
Mounting Through Hole
Case / Package D-61-8-SM
Win Source Part Number 144454-VS-115CNQ015ASMPBF
Popularity Medium
Supply and Demand Status Limited
Quantity per package 400
Ultra Librarian 3D Model Ultra Librarian VS-115CNQ015ASMPBF CAD Model

Description

This electronic component is a Schottky diode manufactured by Vishay.

  • Part Number: 144454-VS-115CNQ015ASMPBF
  • Packaging: Tube/Rail
  • Mounting: Through-Hole
  • Voltage-DC Reverse (Vr) Maximum: 15V
  • Voltage-Forward (Vf) Maximum @ If: 460mV @ 110A
  • Current-Reverse Leakage @ Vr: 20mA @ 15V
  • Operating Temperature: Maximum of 125°C
  • Diode Configuration: 1 Pair Common Cathode
  • Average Rectified Current (Io) per Diode: 55A
  • Category: Discrete Semiconductor Products
  • Status: Active
  • Case/Package: D-61-8-SM
  • Speed (Frequency): Fast Recovery = 200mA (Io)
  • Supply and Demand Status: Limited
  • Quantity per Package: 400
