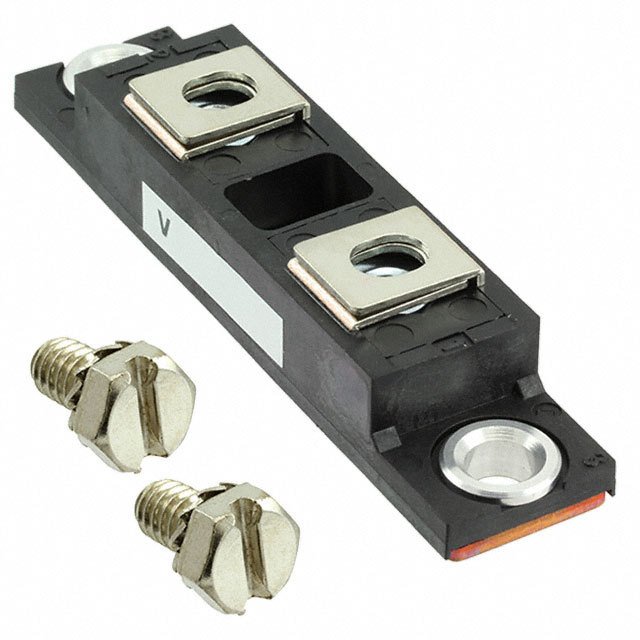

VS-203CNQ100PBF Vishay
Same model may have multiple batches, images only for reference.

VS-203CNQ100PBF

Part No VS-203CNQ100PBF
Manufacturer Vishay
Catalog Diodes, Rectifiers - Arrays
Description DIODE SCHOTTKY 100V 100A TO244
Datasheet
VS-203CNQ100PBF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Bulk
Diode Configuration 1 Pair Common Cathode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Maximum) 100V
Current - Average Rectified (Io) (per Diode) 100A
Voltage - Forward (Vf) (Maximum) @ If 860mV @ 100A
Speed Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 3mA @ 100V
Operating Temperature - Junction -55°C ~ 175°C
Mounting Chassis Mount
Package TO-244AB
Manufacturer Package TO-244
Win Source Part Number 761710-VS-203CNQ100PBF
Popularity Medium
Supply and Demand Status Limited
Family Name VS-203CNQ100
ECCN EAR99
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian VS-203CNQ100PBF CAD Model

Description

The Vishay Semiconductor Diodes Division 761710-VS-203CNQ100PBF is a Schottky diode.

  • Forward Voltage: 860mV @ 100A
  • Reverse Voltage: 100V
  • Package: TO-244AB
  • Mounting: Chassis mount
  • Current Rating: 100A
  • Recovery Speed: 200mA (Io)
  • Operating Temperature: -55°C to 175°C
  • Diode Configuration: Common cathode
  • Supply and Demand Status: Limited
