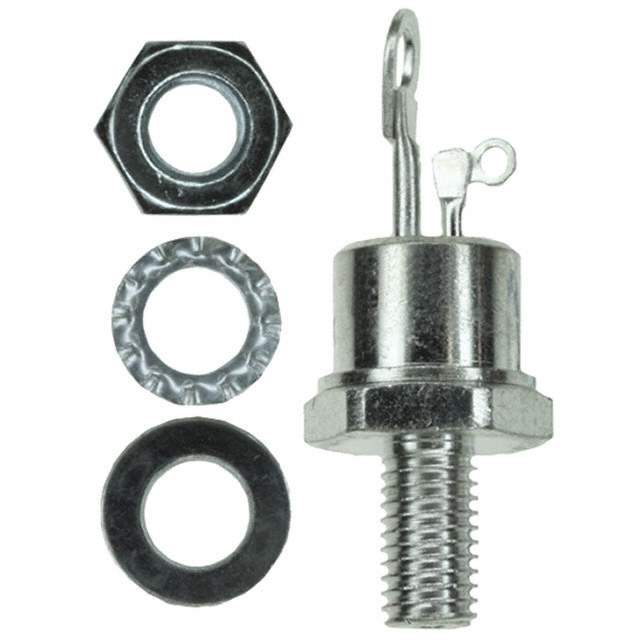

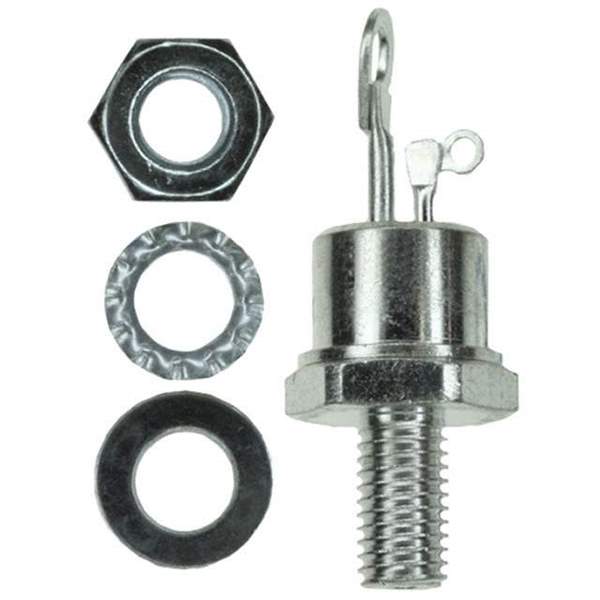

VS-22RIA60 Real Image
Same model may have multiple batches, images only for reference.

VS-22RIA60

Part No VS-22RIA60
Manufacturer Vishay
Catalog SCRs - Single
Description SCR 600V 35A TO208AA  /  SCR 600 V 35 A Standard Recovery Chassis, Stud Mount TO-208AA (TO-48)
Datasheet
VS-22RIA60 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Thyristors - SCRs
Mfr Vishay General Semiconductor - Diodes Division
Package Bulk
Voltage - Off State 600 V
Voltage - Gate Trigger (Vgt) (Max) 2 V
Current - Gate Trigger (Igt) (Max) 60 mA
Voltage - On State (Vtm) (Max) 1.7 V
Current - On State (It (AV)) (Max) 22 A
Current - On State (It (RMS)) (Max) 35 A
Current - Hold (Ih) (Max) 130 mA
Current - Off State (Max) 10 mA
Current - Non Rep. Surge 50, 60Hz (Itsm) 400A, 420A
SCR Type Standard Recovery
Temperature Range - Operating -65°C ~ 125°C
Mounting Type Chassis, Stud Mount
Package / Case TO-208AA, TO-48-3, Stud
Supplier Device Package TO-208AA (TO-48)
Base Product Number 22RIA60
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.30.0080
Other Names *22RIA60,22RIA60,VS-22RIA60-ND,VS22RIA60,VS22RIA60-ND
Standard Package 100
Win Source Part Number 1200684-VS-22RIA60
Ultra Librarian 3D Model Ultra Librarian VS-22RIA60 CAD Model

Description

The 1200684-VS-22RIA60 thyristor from Vishay General Semiconductor is a standard recovery SCR designed for use in various applications.

  • Voltage Rating: 600V
  • Mounting Style: TO-208AA, TO-48-3, Stud
  • Maximum Current Rating: 22A
  • Maximum On-State Voltage: 1.7V
  • Maximum Gate Trigger Voltage: 2V
  • Maximum Gate Trigger Current: 60mA
  • Maximum Off-State Current: 10mA
  • Maximum Non-Repetitive Surge Current: 400A, 420A
  • Temperature Range for Operation: -65°C to 125°C
