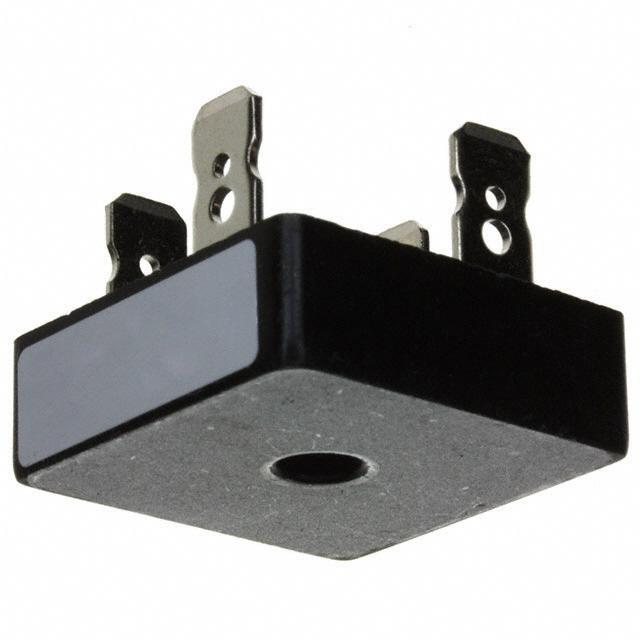

VS-26MB20A Vishay
Same model may have multiple batches, images only for reference.

VS-26MB20A

Part No VS-26MB20A
Manufacturer Vishay
Catalog Bridge Rectifiers
Description RECTIFIER BRIDGE 200V 25A D-34A
Datasheet
VS-26MB20A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Bulk
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Maximum) 200V
Current - Average Rectified (Io) 25A
Current - Reverse Leakage @ Vr 10μA @ 200V
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting QC Terminal
Package 4-Square, D-34
Manufacturer Package D-34
Win Source Part Number 762031-VS-26MB20A
Popularity Medium
Supply and Demand Status Limited
Family Name VS-26MB20A
ECCN EAR99
Country of Origin India
Estimated EOL Date 2031
Ultra Librarian 3D Model Ultra Librarian VS-26MB20A CAD Model

Description

The Vishay Semiconductor Diodes Division 762031-VS-26MB20A is a discrete semiconductor product manufactured by Vishay Semiconductor Diodes Division.

  • Manufacturer Part Number: 762031-VS-26MB20A
  • Win Source Part Number: 762031-VS-26MB20A
  • Packaging: Bulk
  • Operating Temperature Range: -55°C ~ 150°C (TJ)
  • Voltage - Peak Reverse (Maximum): 200V
  • Supply and Demand Status: Limited
  • Popularity: Medium
