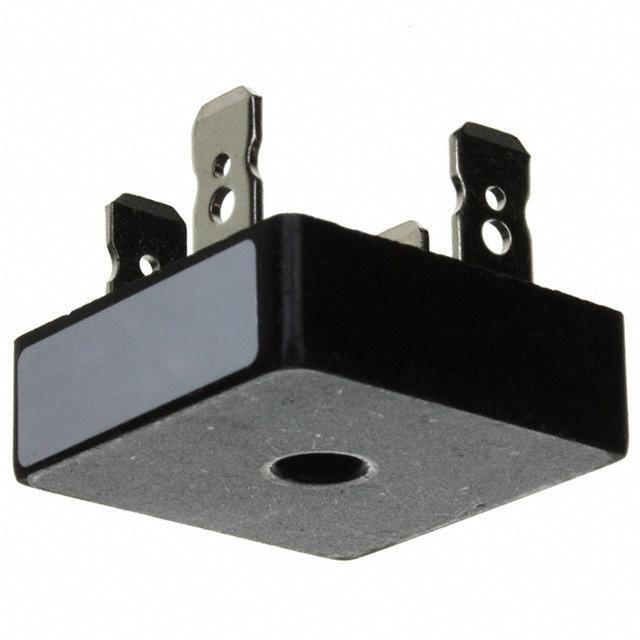

VS-26MB40A Vishay
Same model may have multiple batches, images only for reference.

VS-26MB40A

Part No VS-26MB40A
Manufacturer Vishay
Catalog Bridge Rectifiers
Description RECTIFIER BRIDGE 400V 25A D-34A
Datasheet
VS-26MB40A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Bulk
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Maximum) 400V
Current - Average Rectified (Io) 25A
Current - Reverse Leakage @ Vr 10μA @ 400V
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting QC Terminal
Package 4-Square, D-34
Manufacturer Package D-34
Win Source Part Number 762032-VS-26MB40A
Popularity Medium
Supply and Demand Status Limited
Family Name VS-26MB40A
ECCN EAR99
Estimated EOL Date 2031
Ultra Librarian 3D Model Ultra Librarian VS-26MB40A CAD Model

Description

The VS-26MB40A is a single-phase standard diode manufactured by Vishay Semiconductor Diodes Division from Vishay Semiconductor Diodes Division.

  • Peak Reverse Voltage: 400V
  • Maximum Average Rectified Current: 25A
  • Reverse Leakage Current: 10μA @ 400V
  • Operating Temperature Range: -55°C to 150°C
  • Package: 4-square, D-34 with QC terminals
  • Diode Type: Standard
  • Family: VS-26MB40A
  • Supply and Demand Status: Limited
  • Popularity: Medium
  • Alternative Parts: GBPC3504M B0, GBPC2504M, GBPC2504M B0
