Same model may have multiple batches, images only for reference.

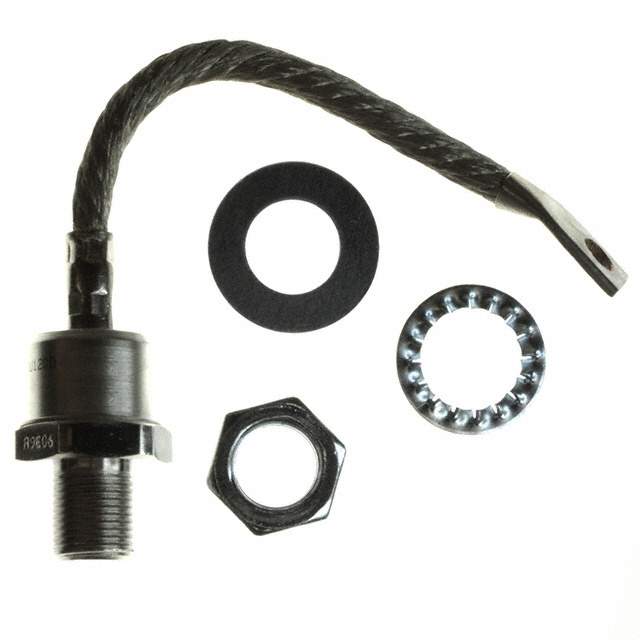

VS-300U30A Real Image
Same model may have multiple batches, images only for reference.

VS-300U30A

Part No VS-300U30A
Manufacturer Vishay
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 300V 300A DO205AB / Diode Standard 300 V 300A Stud Mount DO-205AB (DO-9)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Manufacturer Vishay General Semiconductor - Diodes Division
Packaging Bulk
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 300 V
Current - Average Rectified (Io) 300A
Voltage - Forward (Vf) (Max) @ If 1.4 V @ 942 A
Speed Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 40 mA @ 300 V
Mounting Stud Mount
Case / Package DO-205AB, DO-9, Stud
Supplier Device Package DO-205AB (DO-9)
Operating Temperature - Junction -65°C ~ 200°C
Base Product Number 300U30
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Part Number 300U30A,VS300U30A-ND,VS300U30A,VS-300U30AGI,*300U30A,300U30A-ND,VS-300U30A-ND
Standard Package 12
Win Source Part Number 1325224-VS-300U30A
Ultra Librarian 3D Model Ultra Librarian VS-300U30A CAD Model

Description

The VS-300U30A is a rectifier diode from Vishay General Semiconductor - Diodes Division.

  • Designed for: use in discrete semiconductor products, specifically diodes.
  • Packaging: bulk
  • Package Quantity: 12 units
  • MSL Level: 1
  • Lifespan: unlimited
  • HTSUS code: 8541.10.0080
  • Base Product Number: 300U30
  • Voltage Rating: 300 V
  • Average Rectified Current: 300A
  • Reverse Leakage Current: 40 mA @ 300 V
