Same model may have multiple batches, images only for reference.

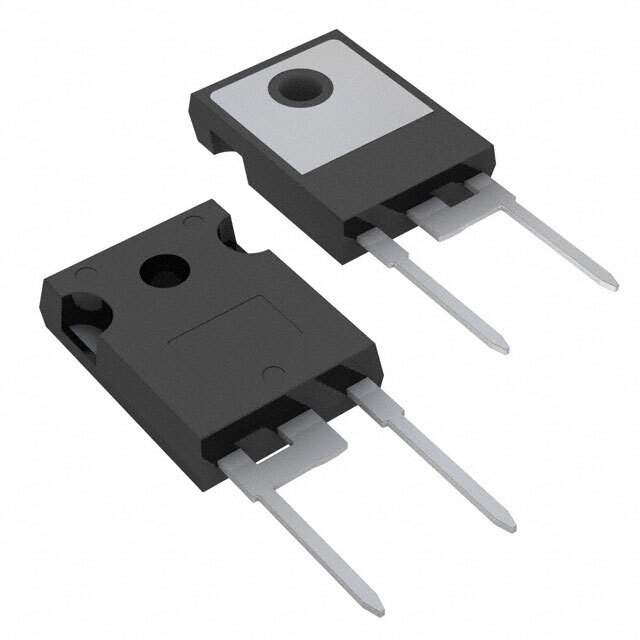

VS-30EPH06PBF Real Image
Same model may have multiple batches, images only for reference.

VS-30EPH06PBF

Part No VS-30EPH06PBF
Manufacturer Vishay
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 600V 30A TO247AC
Datasheet
VS-30EPH06PBF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging Tube/Rail
Status Active
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 600V
Current - Average Rectified (Io) 30A
Voltage - Forward (Vf) (Max) @ If 2.6V @ 30A
Speed(Frequency) Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 35ns
Current - Reverse Leakage @ Vr 50μA @ 600V
Mounting Through Hole
Case / Package TO-247AC Modified
Operating Temperature - Junction -65°C to 175°C
Win Source Part Number 006022-VS-30EPH06PBF
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian VS-30EPH06PBF CAD Model

Description

The Vishay 006022-VS-30EPH06PBF is a standard diode with a maximum DC reverse voltage of 600V and an average rectified current of 30A.

  • Voltage: 600V
  • Current: 30A
  • Package: TO-247AC modified
  • Mounting: through hole
  • Recovery Speed: 200mA (Io)
  • Forward Voltage: 2.6V @ 30A
  • Reverse Recovery Time: 35ns
  • Reverse Leakage Current: 50μA @ 600V
  • Category: Discrete Semiconductor Products
  • Status: active
