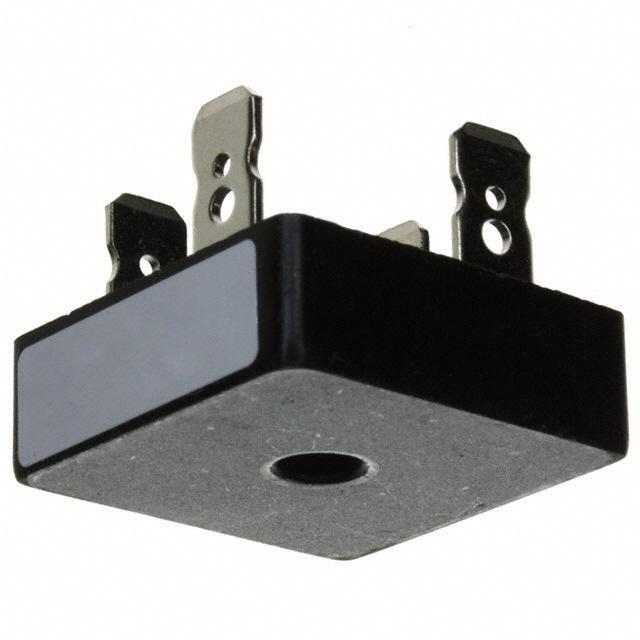

VS-36MB160A Vishay
Same model may have multiple batches, images only for reference.

VS-36MB160A

Part No VS-36MB160A
Manufacturer Vishay
Catalog Bridge Rectifiers
Description RECTIFIER BRIDGE 1600V 35A D-34A
Datasheet
VS-36MB160A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Bulk
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Maximum) 1600V
Current - Average Rectified (Io) 35A
Current - Reverse Leakage @ Vr 10μA @ 1600V
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting QC Terminal
Package 4-Square, D-34
Manufacturer Package D-34
Win Source Part Number 763409-VS-36MB160A
Popularity Medium
Supply and Demand Status Limited
Quantity per package 20
Family Name VS-36MB160A
Introduction Date July 24, 2013
ECCN EAR99
Estimated EOL Date 2037
Ultra Librarian 3D Model Ultra Librarian VS-36MB160A CAD Model

Description

The Vishay Semiconductor Diodes Division VS-36MB160A is a single-phase diode with a standard technology.

  • Peak Reverse Voltage: 1600V
  • Current Average Rectified: 35A
  • Package: D-34, 4-square, QC terminal mounting
  • Operating Temperature Range: -55°C to 150°C (TJ)
  • Current Reverse Leakage: 10μA @ 1600V
  • Family: VS-36MB160A
  • Category: Discrete Semiconductor Products
  • Alternative Parts: VBO20-16NO2, VBO25-16AO2, VBO20-16AO2
  • Introduction Date: July 24, 2013
  • Estimated EOL Date: 2037
