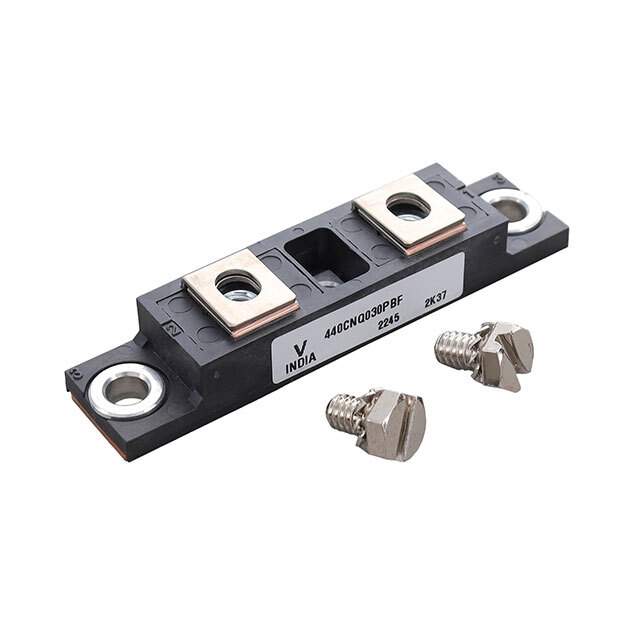

VS-440CNQ030PBF Real Image
Same model may have multiple batches, images only for reference.

VS-440CNQ030PBF

Part No VS-440CNQ030PBF
Manufacturer Vishay
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY SCHOTTKY 30V TO244
Datasheet
VS-440CNQ030PBF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Tray
Diode Configuration 1 Pair Common Cathode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Maximum) 30V
Current - Average Rectified (Io) (per Diode) 220A
Voltage - Forward (Vf) (Maximum) @ If 630mV @ 440A
Speed Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 20mA @ 30V
Operating Temperature - Junction 150°C (Maximum)
Mounting Screw Mount
Package TO-244AB
Manufacturer Package TO-244AB
Win Source Part Number 763645-VS-440CNQ030PBF
Popularity Medium
Supply and Demand Status Limited
Family Name VS-440CNQ030
ECCN EAR99
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian VS-440CNQ030PBF CAD Model

Description

The Vishay Semiconductor Diodes Division VS-440CNQ030PBF is a Schottky diode that is commonly used in high-frequency switching power supplies, DC-DC converters, and other power applications.

  • Recovery Speed: 200mA (Io)
  • Package: TO-244AB (Screw Mount)
  • Diode Configuration: 1 Pair Common Cathode
  • Average Rectified Current: 220A (per diode)
  • Maximum Operating Temperature: 150°C
  • Maximum Reverse Voltage: 30V
  • Series: VS-440CNQ030
  • Alternative Parts: 444CNQ035, MBR50035CT, CPT50130
  • Supply and Demand Status: Limited
  • EOL Date: 2026
