Same model may have multiple batches, images only for reference.

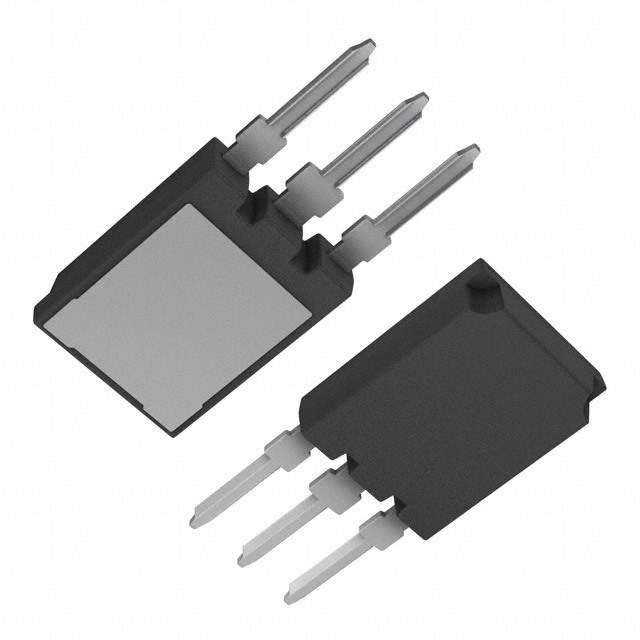

VS-70TPS16PBF Real Image
Same model may have multiple batches, images only for reference.

VS-70TPS16PBF

Part No VS-70TPS16PBF
Manufacturer Vishay
Catalog SCRs - Single
Description SCR PHSE CTRL 75A 1600V SUPER247
Datasheet
VS-70TPS16PBF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging Tube/Rail
Status Active
Voltage - Off State 1600V
Voltage - Gate Trigger (Vgt) (Max) 1.5V
Current - Gate Trigger (Igt) (Max) 100mA
Voltage - On State (Vtm) (Max) 1.4V
Current - On State (It (AV)) (Max) 70A
Current - On State (It (RMS)) (Max) 75A
Current - Hold (Ih) (Max) 200mA
Current - Off State (Max) 1mA
Current - Non Rep. Surge 50, 60Hz (Itsm) 1400A @ 50Hz
SCR Type Standard Recovery
Temperature Range - Operating -40°C to 125°C
Mounting Through Hole
Case / Package SUPER-247 (TO-274AA)
Win Source Part Number 213895-VS-70TPS16PBF
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian VS-70TPS16PBF CAD Model

Description

Vishay 213895-VS-70TPS16PBF is a through-hole SCR type device that is designed for use in a variety of applications.

  • Off-State Voltage: 1600V
  • Gate Trigger Voltage: 1.5V
  • On-State Current: 70A
  • Off-State Current: 1mA
  • Non-Repetitive Surge Current: 1400A @ 50Hz
  • Case: SUPER-247 (TO-274AA)
  • Popularity: Medium
