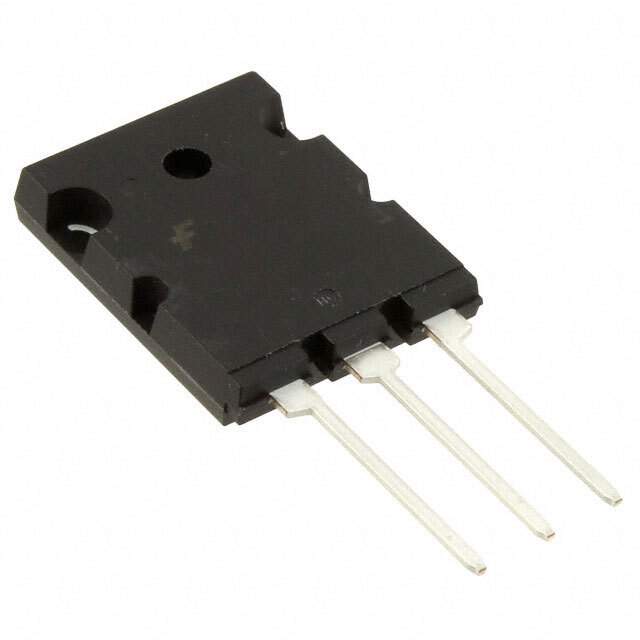

Introducing the SGL50N60RUFTU IGBT from ON Semiconductor

The SGL50N60RUFTU is a state-of-the-art insulated gate bipolar transistor (IGBT) designed and manufactured by ON Semiconductor, a leader in energy-efficient innovations. This IGBT is part of ON Semiconductor's high-performance portfolio, designed to deliver superior switching performance and high durability in a wide array of power applications.

Key Features

• High Current Capability: The SGL50N60RUFTU is capable of handling continuous collector currents up to 50A, making it suitable for high-power applications.
• Low On-State Voltage: It boasts a low on-state voltage (V<sub>CE(ON)) typically at 1.9V, which reduces conduction losses and improves overall efficiency.
• Fast Switching Speed: With a fast switching speed, this IGBT minimizes switching losses and is ideal for high-frequency operations.
• High Input Impedance: This device features a high input impedance, which simplifies the drive circuitry and reduces the overall system cost.
• Ruggedness: The SGL50N60RUFTU is designed for rugged industrial environments, providing reliable performance under stress and over a wide temperature range.
• Co-Packaged Free Wheeling Diode: It comes with an integrated fast recovery diode, which provides protection against reverse recovery transients and enhances efficiency.

Applications

The versatility of the SGL50N60RUFTU allows it to be used in various applications, including:

• Uninterruptible Power Supplies (UPS)
• Motor Drives
• Power Factor Correction (PFC) circuits
• Induction Heating
• Welding Equipment
• Switch Mode Power Supplies (SMPS)

Quality and Reliability

ON Semiconductor is committed to high standards of quality and reliability, and the SGL50N60RUFTU is no exception. It is built using robust manufacturing techniques that ensure its performance in even the most demanding conditions. The device also meets stringent industry standards, ensuring a reliable solution for your power management needs.

Environmental Consideration

As with all ON Semiconductor products, the SGL50N60RUFTU is designed with environmental responsibility in mind. The device is RoHS compliant, ensuring that it adheres to the latest regulations for the restriction of hazardous substances in electronic equipment.

With its combination of performance, efficiency, and reliability, the SGL50N60RUFTU from ON Semiconductor is an excellent choice for designers looking to optimize their power systems for both performance and cost.
