Same model may have multiple batches, images only for reference.

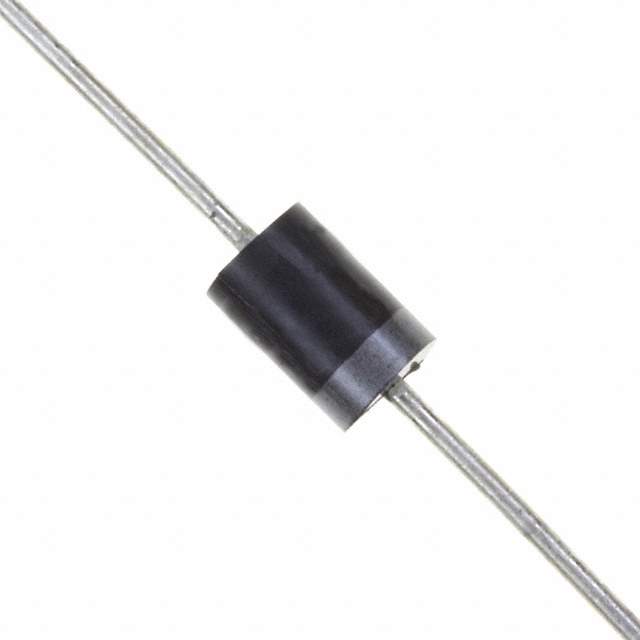

VS-80SQ035 Real Image
Same model may have multiple batches, images only for reference.

VS-80SQ035

Part No VS-80SQ035
Manufacturer Vishay
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 35V 8A DO204AR
Datasheet
VS-80SQ035 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging Bulk
Status Obsolete(EOL)
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 35V
Current - Average Rectified (Io) 8A
Voltage - Forward (Vf) (Max) @ If 530mV @ 8A
Speed(Frequency) Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 2mA @ 35V
Mounting Through Hole
Case / Package DO-204AR
Operating Temperature - Junction -55°C to 175°C
Win Source Part Number 1010271-VS-80SQ035
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian VS-80SQ035 CAD Model

Description

The Vishay VS-80SQ035 is a through-hole mounted Schottky diode that has a maximum reverse voltage (Vr) of 35V and an average rectified current (Io) of 8A.

  • Manufacturer: Vishay
  • Mounting Type: Through-Hole
  • Maximum Reverse Voltage (Vr): 35V
  • Average Rectified Current (Io): 8A
  • Forward Voltage (Vf) (Max) @ If: 530mV @ 8A
  • Current - Reverse Leakage @ Vr: 2mA @ 35V
  • Recovery Speed (Frequency): 200mA (Io)
  • Operating Temperature - Junction: -55°C to 175°C
  • Market Status: open
  • Supply and Demand Status: Balanced
  • Packaging: Bulk
