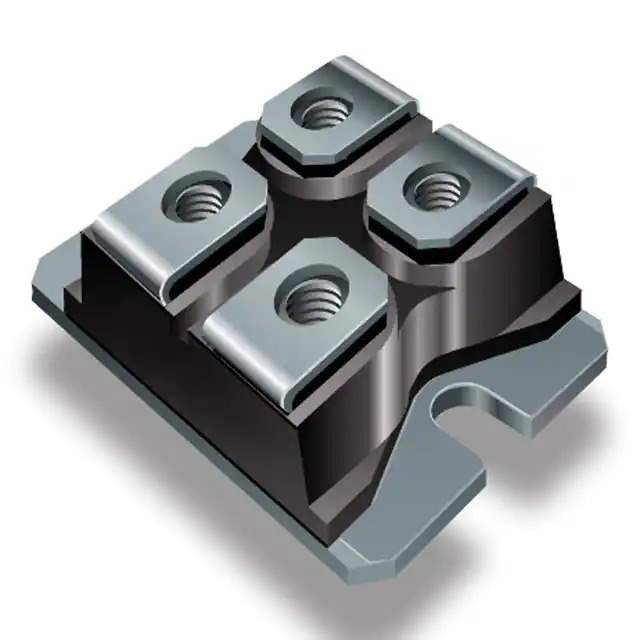

VS-GB75DA120UP

Part No VS-GB75DA120UP
Manufacturer Vishay
Catalog IGBTs - Modules
Description IGBT MODULE 1200V 658W SOT227
Datasheet
VS-GB75DA120UP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Transistors - IGBTs - IGBT Modules
Mfr Vishay
Package Bulk
Product Status Obsolete
IGBT Type NPT
Configuration Single
Voltage - Collector Emitter Breakdown (Max) 1200 V
Power - Max 658 W
Vce(on) (Max) @ Vge, Ic 3.8V @ 15V, 75A
Current - Collector Cutoff (Max) 250 µA
Input Standard
NTC Thermistor No
Temperature Range - Operating -40°C ~ 150°C (TJ)
Mounting Type Chassis Mount
Package / Case SOT-227-4, miniBLOC
Supplier Device Package SOT-227
Base Product Number GB75
Standard Package 180 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.29.0095
Win Source Part Number 847162-VS-GB75DA120UP
Ultra Librarian 3D Model Ultra Librarian VS-GB75DA120UP CAD Model

Description

The VS-GB75DA120UP is an IGBT module from Vishay. VS-GB75DA120UP from Vishay.

  • Configuration: Single
  • Maximum Power: 658W
  • Collector-Emitter Breakdown Voltage: 1200V
  • Vce(on): 3.8V @ a gate-emitter voltage of 15V and a collector current of 75A
  • Mounting Type: Chassis Mount
  • Package: SOT-227-4 miniBLOC
  • Operating Temperature: -40°C to 150°C
  • Product Status: Obsolete
